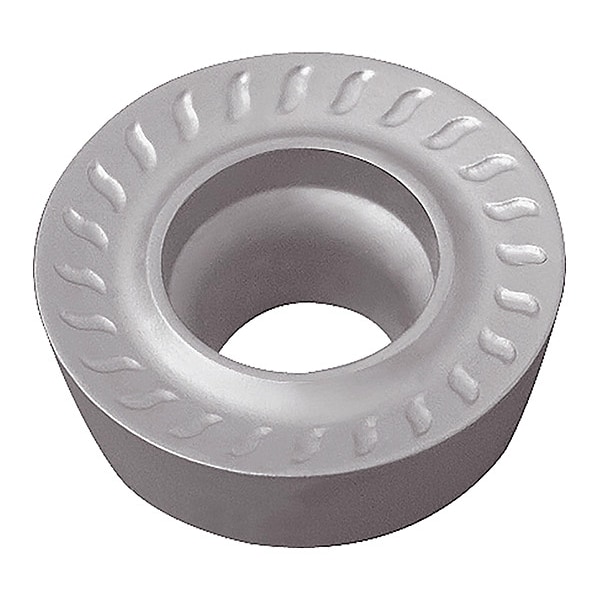

Milling Insert, Round, RPMT 2006M0H KW10
| Item | Parallelogram Milling Insert |
|---|---|
| Insert Style | RPMT |
| Insert Size | 2,006 |
| ISO Number | RPMT2006M0-H |
| Chip-Breaker | Yes |
| Rake | Positive |
| Inscribed Circle | 20 mm |
| Mounting Hole Dia. | 6.5 mm |
| Thickness | 6.35 mm |
| Cutting Application | Contouring, Facing, Pocketing, Radius Milling, Ramping, Shouldering |
| Through Hole Inside Dia. | 6.5 mm |
| Material - Machining | Carbide |
| ANSI Code | RPMT2006M0H |
| Manufacturer Grade | KW10 |
| Hole Type | Countersunk Hole |
| For Toolholder | MRP...-20 |
| Measurement System | Metric |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Non-Ferrous |
| Insert Holding Type | Screw Held |
| Secondary Material Application ISO Code | K |
| Secondary Material Application | Cast Iron |
| Finish - Machining | Bright |
| Chip-Breaker Code | H |
| Clearance Angle | 11 deg |
| Cutting Edge | Tough Edge |
| Shape | Round |
| Primary Material Application ISO Code | N |
| Package Quantity | 1 |
