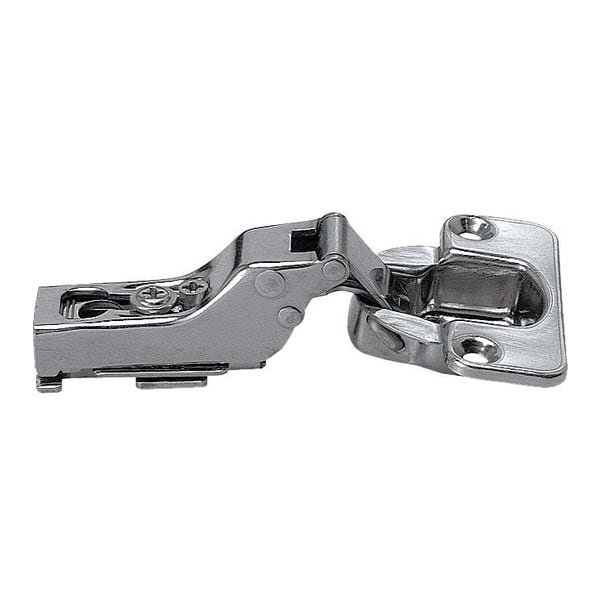

Concealed Hinge, 304 Stainless Steel, Screw on Mounting, 11/16 in Leaf W x 2 1/8 in Leaf H
| Corners | Round |
|---|---|
| Door Leaf Height | 2-1/8 in |
| Door Leaf Thickness | 0.094 in |
| Door Leaf Width | 1-1/2 in |
| Finish | polished |
| Holes per Leaf | 2 |
| Load Capacity | 11 lb |
| Material | 304 Stainless Steel |
| Mounting | Screw on |
| Orientation | Non Handed |
| Range of Motion | 100 deg |
| Required Door Thickness | 25/32 in |
| Features | Free Swinging Type; 19mm Overlay; Requires Mounting Plate 304B-P4A/32-3W for Installation |
| Frame Leaf Width | 11/16 in |
| Frame Leaf Thickness | 0.094 in |
| Ligature Resistant | No |
| Hardware | Yes |
| Standards | NSF, RoHS 3 Compliant |
| Item | Concealed Hinge |
| Pin Material | Stainless Steel |
| Pin Type | Nonremovable |
| Holes | With |
| Frame Leaf Height | 2-1/8 in |
| Door Leaf Length | 1-1/2 in |
| Frame Leaf Length | 1-41/64 in |
| Width | 1-1/2 in |
| Height | 2-9/64 in |
| Leaf Thickness | 1-5/64 in |
| Color | Natural |
| Overall Width | 1-1/2 in |
| Door Thickness | 25/32 in |
| Hand Orientation | Non-Handed |
| Includes Hardware | Hardware Included |
| Range of Motion - Maximum | 100 deg |
| Resistance Properties | Corrosion-Resistant |
| Door Thickness - Minimum | 9/16 in |
| Mounting Style | Half Mortise |
| Corner Type | Round |
| Number of Holes per Leaf | 2 |
| Removable Pin | No |
| Door Thickness - Maximum | 13/16 in |
| ANSI/BHMA Finish | Bright Stainless Steel |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
