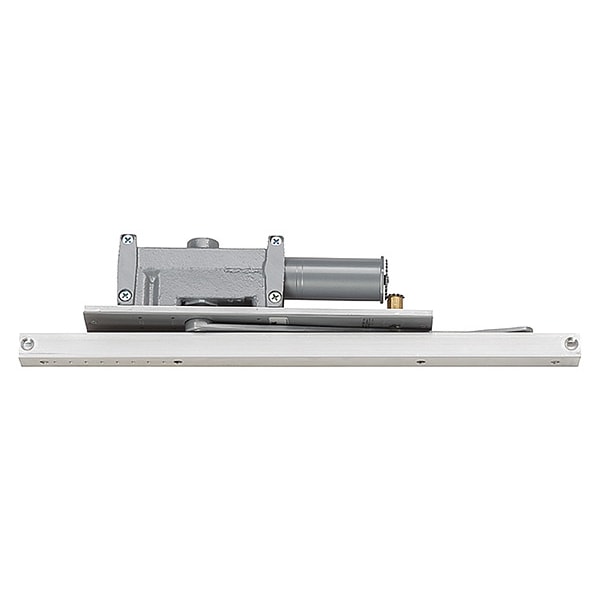

Manual, Hydraulic, 2010 Series Concealed Closers, Door Closer, Heavy Duty Interior and Exterior
| Item | Door Closer |
|---|---|
| Closer Mounting Style | Concealed Overhead |
| Closer Performance | Heavy Duty |
| Closer Series | 2,010 Series (Concealed Closers) |
| Closer Type | Standard Arm |
| Color | Aluminum |
| Finish | Aluminum |
| Hand Orientation | RH |
| Housing Depth | 2-1/16 in |
| Housing Height | 3-5/8 in |
| Housing Length | 14 in |
| Interior/Exterior | Interior, Exterior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Manual |
| Material | Cast Iron |
| Mounting Hardware | Included |
| ADA Compliant | Yes |
| Max. Door Opening | 110 Degrees |
| Fire Rating - Door Hardware | 3 hr |
| Standards | Grade 1-ANSI A156.4; UL 10 C; ADA; 100 Hour Salt Spray; Meets BAA-Buy American Act |
| Ligature Resistant | No |
| Interior Door Width | 48 in |
| Spring Size | 6 |
| Series | 2010 |
| Arm Material | Steel |
| Exterior Door Width | 36 in |
| Arm Type | Track |
| Features | 1 1/2 in dia Piston |
| Spring Type | Adjustable |
| Fire Rating | 3 hr |
| Exterior Door Width - Maximum | 4 ft |
| Ligature-Resistant | Not Ligature-Resistant |
| ANSI/BHMA Finish | Aluminum Painted |
| Stop Type | Spring |
| UL Fire Rating | UL10C |
| Product Type | Door Closer |
| Door Opening - Maximum | 110 deg |
| Spring Size - Maximum | 6 |
| Includes Hardware | Hardware Included |
| Spring Size - Minimum | 1 |
| Interior/Exterior Use | Interior, Exterior |
| Performance Grade | 1 |
| Interior Door Width - Maximum | 5 ft |
| Operation Style | Manual |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
