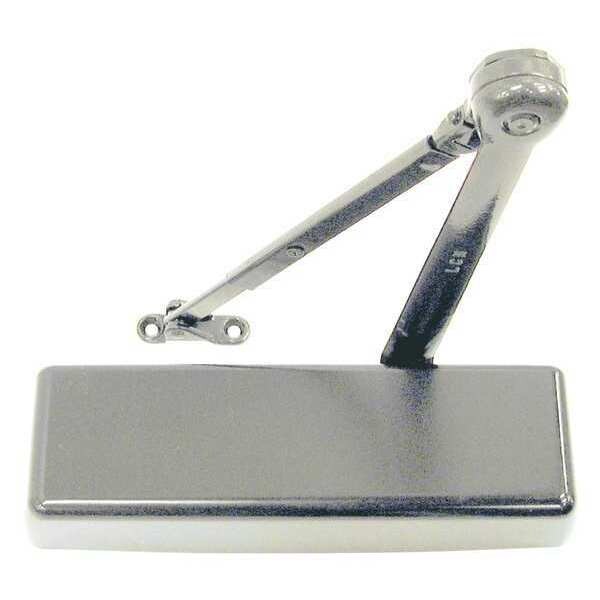

Manual, Hydraulic, 4020 Series Surface Mounted Closers, Surface Mounted Closer, Heavy Duty Aluminum
| Item | Surface Mounted Closer |
|---|---|
| Closer Mounting Style | Surface |
| Closer Performance | Heavy Duty |
| Closer Series | 4,020 Series (Surface Mounted Closers) |
| Closer Type | Hold Open |
| Color | Aluminum |
| Finish | Aluminum |
| Hand Orientation | RH |
| Housing Depth | 2-1/4 in |
| Housing Height | 3-1/2 in |
| Housing Length | 12-1/4 in |
| Interior/Exterior | Interior, Exterior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Manual |
| Material | Aluminum |
| Mounting Hardware | Included |
| Ligature Resistant | No |
| Projection from Wall | 2-1/4 in |
| ADA Compliant | Yes |
| Includes | SRT Screws |
| Standards | Grade 1-ANSI A156.4; UL 10C; ADA; 100 hour Salt Spray; Meets BAA-Buy American Act |
| Arm Material | Forged Steel |
| Arm Type | Hold Open, Regular |
| Spring Size | Adjustable 1 to 5 |
| Exterior Door Width | 42 in |
| Interior Door Width | 54 in |
| Max. Door Opening | 180 Degrees |
| Category Type | Top Jamb |
| Features | All-Weather Fluid, Application Specific Handed, Double Heat-Treated Steel Pinion Journal |
| Series | 4020 |
| Door Handing | Right Hand |
| For Use With | Interior and Exterior Doors |
| Mounting Style | Top Jamb |
| Spring Size - Maximum | 6 |
| Height Between Mounting Holes | 1-1/16 in |
| Spring Type | Adjustable |
| Product Type | Door Closer |
| Interior Door Width - Maximum | 5 ft |
| Spring Size - Minimum | 1 |
| Interior/Exterior Use | Interior, Exterior |
| UL Fire Rating | UL10C |
| Length Between Mounting Holes | 4-1/8 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Exterior Door Width - Maximum | 4 ft |
| Performance Grade | 1 |
| ANSI/BHMA Finish | Aluminum Painted |
| Projection | 2-1/4 in |
| Includes Hardware | Hardware Included |
| Operation Style | Manual |
| Door Opening - Maximum | 140 deg |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
