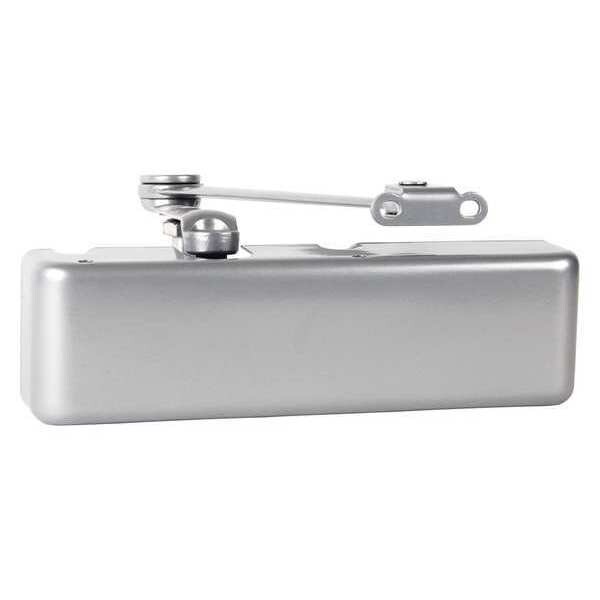

Manual, Hydraulic, 4510 Series High Security Closers, Surface Track Closer, Heavy Duty Aluminum
| Item | Surface Track Closer |
|---|---|
| Closer Mounting Style | Surface |
| Closer Performance | Heavy Duty |
| Closer Series | 4,510 Series (High Security Closers) |
| Closer Type | Non Hold Open |
| Color | Aluminum |
| Finish | Aluminum |
| Hand Orientation | RH |
| Housing Depth | 2-15/64 in |
| Housing Height | 3-1/2 in |
| Housing Length | 12-1/8 in |
| Interior/Exterior | Interior, Exterior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Manual |
| Material | Aluminum |
| Arm Type | Regular |
| Max. Door Opening | 140 Degrees |
| Projection from Wall | 2-1/4 in |
| Ligature Resistant | No |
| Arm Material | Cast Iron |
| ADA Compliant | Yes |
| Mounting Hardware | Included |
| Spring Size | Adjustable 1 to 6 |
| Category Type | Parallel Arm |
| Series | 4510 |
| Door Handing | Right Hand |
| Standards | ANSI Standard A156.4, UL and cUL Listed |
| For Use With | High Security |
| Mounting Style | Extra-Duty |
| Exterior Door Width - Maximum | 4 ft |
| Performance Grade | 1 |
| Operation Style | Manual |
| Ligature-Resistant | Not Ligature-Resistant |
| Spring Size - Minimum | 1 |
| Product Type | Door Closer |
| Height Between Mounting Holes | 1/2 in |
| Length Between Mounting Holes | 1-1/2 in, 4-1/8 in |
| Projection | 2-1/4 in |
| Interior Door Width - Maximum | 5 ft |
| ANSI/BHMA Finish | Aluminum Painted |
| Stop Type | Spring |
| Includes Hardware | Hardware Included |
| UL Fire Rating | UL10C |
| Spring Size - Maximum | 5 |
| Spring Type | Fixed |
| Door Opening - Maximum | 180 deg |
| Interior/Exterior Use | Interior, Exterior |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
