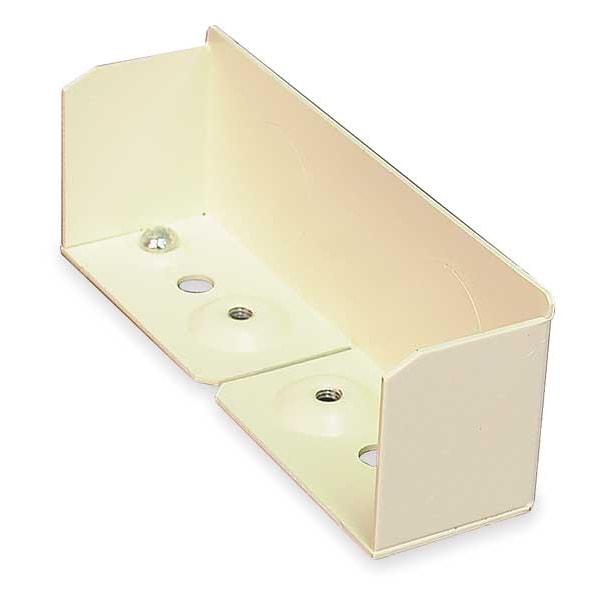

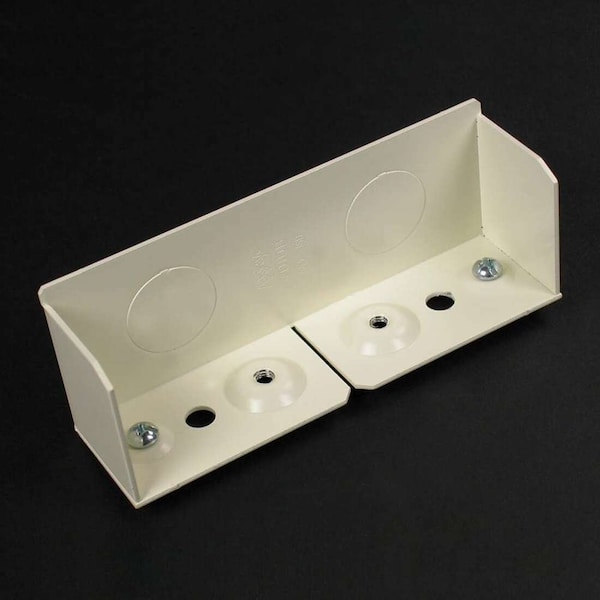

Blank End, 4000 Series, 1 Channel, 4.75 in W, 1.25 in H, 1.25 in L, Ivory
| Item | Blank End |
|---|---|
| Fittings Sub-Category | End Fittings |
| Type | Raceway |
| Color | Ivory |
| For Use With | 4000 Raceway |
| Material | Steel |
| Height | 1-1/4 in |
| Width | 4-3/4 in |
| Length | 1-1/4 in |
| Series | 4000 |
| Includes | (1) Blank End Fitting |
| Mounting Style | Screw On |
| Standards | ADA Compliant, cULus, UL Listed, UL5 |
| Number of Channels | 1 |
| Length (Straight Wireway) | 1-1/4 in |
| Overall Length | 1-1/4 in |
| For Raceway Height | 1-3/4 in |
| For Raceway Width x Height | 4-3/4 in x 1-3/4 in |
| Compatible with Product Type | 4000 Raceways |
| Width (In.) | 4-3/4 |
| Length (In.) | 1-1/4 |
| For Raceway Width | 4-3/4 in |
| Overall Width | 4 3/4 in |
| Overall Height | 1 1/4 in |
| Height (In.) | 1-1/4 |
| Features | Has Two 1/2 in Trade Size KOs to Facilitate End Feeding |
| Basic Material | Steel |
| Voltage | 600 V |
| Depth | 1.38 in |
| Application Sector | Commercial |
| Special Features | Large Capacity, Complete line of fittings, Wide range of Datacom connectivity options, UL5 and ADA compliant, UL and cUL Listed |
| Standard | cULus Listed Surface Metal Raceway: File E41751: Guide RJPR/RJPR7 |
| Cable Manager Type | End Fitting |
| Product Name | Wiremold 4000 Blank End Fitting |
| Product Type | Cable Routing |
| Compatibility | Wiremold 2400 Series Raceway |
| Product Material | Steel |
| cULus Listed | Yes |
| Product Environmental Profile | Yes |
| Product Volume US | 11.18 cu in |
| Product Depth US | 1.38 in |
| Product Line | Wiremold |
| Product Height US | 1-3/4 in |
| Product Width US | 4.63 in |
| Package Quantity | 1 |
