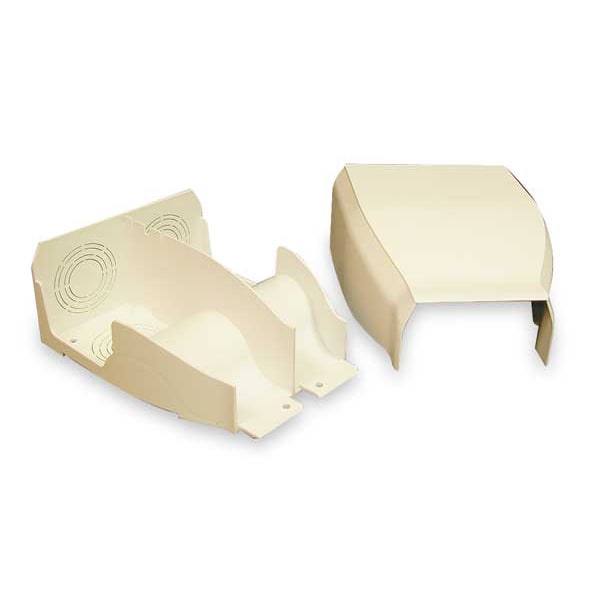

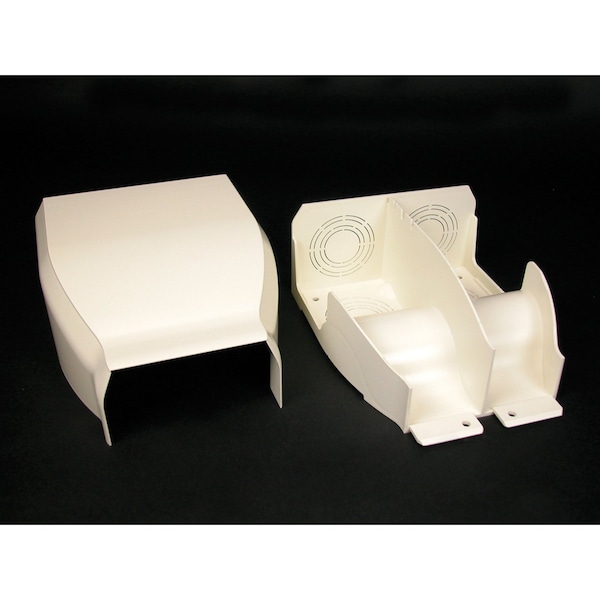

Divided Entrance End, CableSmart 40N2 Series, 1 Channel, 8.56 in W, 2 in H, 7.31 in L, White
| Item | Divided Entrance End |
|---|---|
| Fittings Sub-Category | End Fittings |
| Type | Raceway |
| Color | White |
| For Use With | 40N2 Raceway |
| Material | Non-Metallic |
| Height | 2 in |
| Length | 7.31 in |
| Width | 8.56 in |
| Mounting Style | Snap On |
| Standards | UL Listed |
| Includes | Entrance End Fitting |
| Number of Channels | 1 |
| Series | CableSmart 40N2 |
| Length (Straight Wireway) | 7.31 in |
| For Raceway Width | 4 in |
| For Raceway Height | 2 in |
| Compatible with Product Type | 40N2 Raceways |
| Overall Width | 6 in |
| Overall Length | 7-1/4 in |
| Overall Height | 2 in |
| For Raceway Width x Height | 4 in x 2 in |
| Width (In.) | 8.56 |
| Height (In.) | 2 |
| Length (In.) | 7.31 |
| Raceway Material | Plastic |
| Bend Radius | 2 in |
| Voltage | 600 V |
| Features | FiberReady divided fitting to feed 40N2 Series Raceway. Includes 3/4'', 1'', 1 1/4'', and 1 1/2'' trade size Kos on back and top. |
| Application Sector | Commercial, Residential |
| Standard | cULus Listed Raceway: File E90378 Guide RJTX. Complies with Flammability requirements of UL-5A. Fittings: File E90377 Guide RJYT. Meets Article 388 of NEC. UL Listed for up to 600V. Meets Section 12-1600 of CEC. |
| Special Features | Extremely tamper-resistant. FiberReady® 2" [51mm] fittings. Available prewired. New transition fitting options. High capacity device box options. Corner drop feed. |
| Cable Manager Type | End Fitting |
| Product Material | Polyvinyl Chloride |
| Product Type | Cable Routing |
| Product Color | White |
| Compatibility | CableSmart 40N2 Large Capacity Raceway |
| Product Name | Cablesmart 40N2 Divided Entrance End Fitting |
| cULus Listed | Yes |
| Product Line | Wiremold |
| Product Environmental Profile | Yes |
| Package Quantity | 1 |
