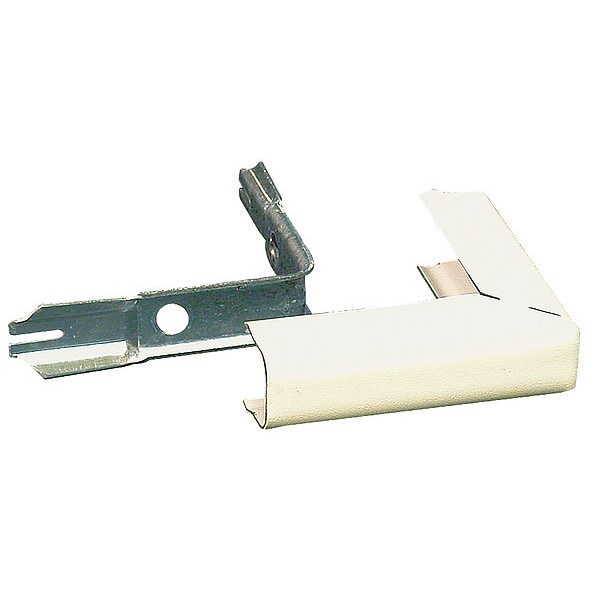

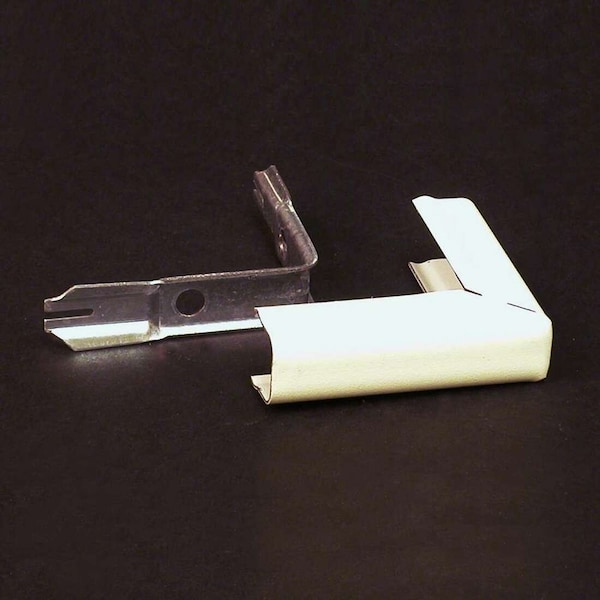

External Elbow Raceway, 700 Series, 1 Channel, 3/4 in W, 0.66 in H, 2-3/4 in L, Ivory
| Item | Raceway |
|---|---|
| Type | External Elbow |
| Series | 700 |
| Number of Channels | 1 |
| Width | 3/4 in |
| Height | 0.66 in |
| Length | 2-3/4 in |
| Material | Steel |
| Color | Ivory |
| Cover Type | Screw On |
| For Use With | 700 Raceway |
| Includes | (1) Outside Elbow |
| Mounting Style | Screw On |
| Standards | ADA Compliant, cULus, UL Listed, UL5 |
| Features | Outside Right Angle Turns |
| For Raceway Width x Height | 3/4 in x 21/32 in |
| For Raceway Height | 3/4 in |
| Overall Length | 2-1/2 in |
| Compatible with Product Type | 700 Raceways |
| For Raceway Width | 3/4 in |
| Voltage | 600 V |
| Application Sector | Commercial, Residential |
| Standard | cULus Listed Raceway: File E4376 Guide RJBT. Fittings: File E4751 Guide RJPR. Meets Article 386 of NEC. Meets Section 12-1600 of CEC. |
| Special Features | Low-profile, unobtrusive appearance. Blends with any décor or setting. ScuffCoat finish, tough, durable, scratch-resistant can be overpainted with latex paint. Fittings have removable covers which allow easy access to wiring for changes and additions. |
| Product Name | Wiremold 700 Outside Elbow Fitting |
| Product Series | 700 |
| Product Type | Cable Routing |
| Product Material | Steel |
| Product Line | Wiremold |
| cULus Listed | Yes |
| Product Environmental Profile | Yes |
| Fittings Sub-Category | Elbows |
| Package Quantity | 1 |
