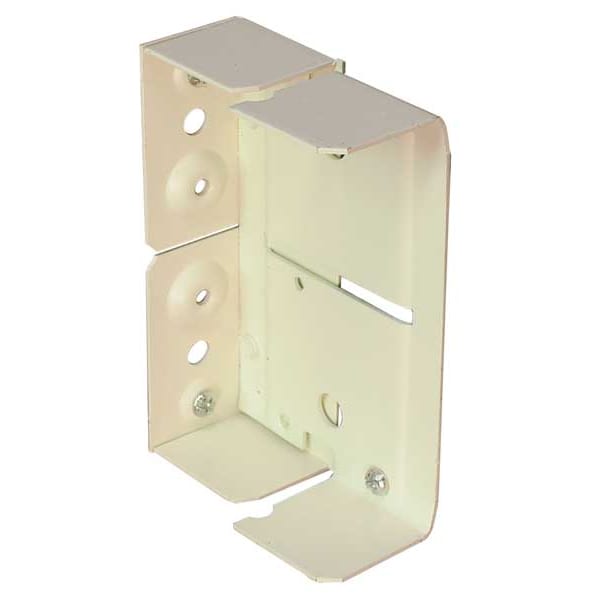

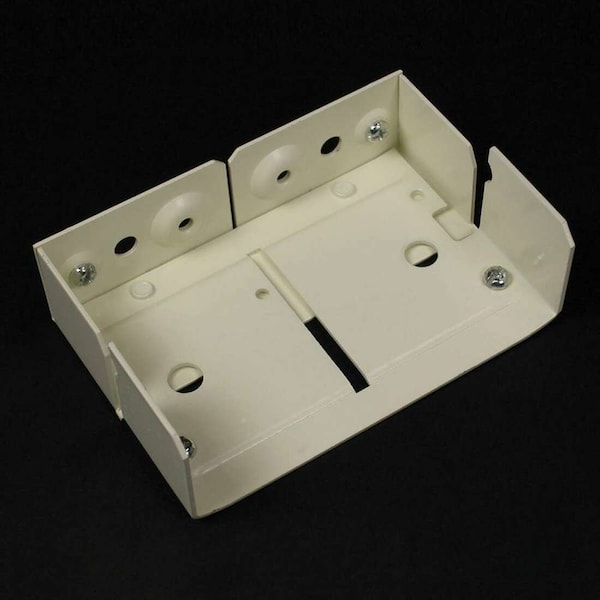

Internal Elbow Raceway, 4000 Series, 1 Channel, 4-3/4 in W, 1-1/2 in H, 3 in L, Ivory
| Item | Raceway |
|---|---|
| Type | Internal Elbow |
| Series | 4000 |
| Number of Channels | 1 |
| Width | 4-3/4 in |
| Height | 1-1/2 in |
| Length | 3 in |
| Material | Steel |
| Color | Ivory |
| Cover Type | Screw On |
| For Use With | 4000 Raceway |
| Includes | (1) Internal Elbow, (1) Fiber Bushing |
| Standards | ADA Compliant, cULus, UL Listed, UL5 |
| Mounting Style | Screw On |
| Features | 90 Degrees Internal Corners, Fiber Bushing Included |
| For Raceway Height | 1-3/4 in |
| Compatible with Product Type | 4000 Raceways |
| For Raceway Width | 4-3/4 in |
| Overall Length | 3-1/4 in |
| For Raceway Width x Height | 4-3/4 in x 1-3/4 in |
| Voltage | 600 V |
| Standard | cULus Listed Raceway: File E4376 Guide RJBT. Fittings: File E41751 Guide RJPR. Base & Blank Cover: Meets Article 386 of NEC. Meets Section 12-600 of CEC. |
| Application Sector | Commercial, Residential |
| Special Features | Large cross section area, provides ample space for largewiring requirements.Complete line of fittings, provides complete wiring solutionand allows for interconnection between raceway systems. Gray baked enamel and Ivory ScuffCoat finish makes a scratch resistant surface. |
| Compatibility | Wiremold 2400 Series Raceway |
| Product Material | Steel |
| Product Type | Cable Routing |
| Package Contents | Cable Raceway, Fiber Bushing, |
| Product Name | Wiremold 4000 Internal Elbow Fitting |
| Product Line | Wiremold |
| Product Environmental Profile | Yes |
| cULus Listed | Yes |
| Fittings Sub-Category | Elbows |
| Package Quantity | 1 |
