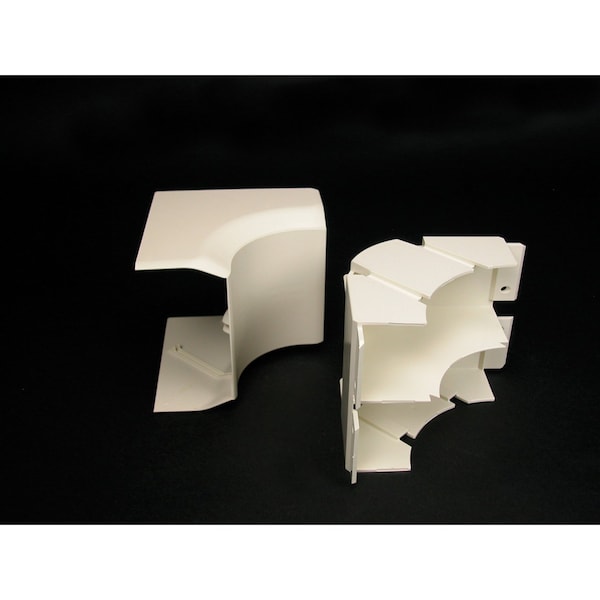

Internal Elbow Raceway, 40N2 Series, 4 in W, 2 in H, 4-1/2 in L, Ivory
| Item | Raceway |
|---|---|
| Type | Internal Elbow |
| Series | 40N2 |
| Width | 4 in |
| Height | 2 in |
| Length | 4-1/2 in |
| Material | PVC |
| Color | Ivory |
| For Use With | 40N2 Raceway |
| Standards | cUL Listed, UL Listed |
| Features | 90 Degrees Internal Corner with Integral Dividers to Provide 2 in (51mm) Cable Bend Radius for UTP and Fiber Optic Installations, Each Leg is 4-1/2 in (114mm), Ideal for Lay-in or Pull-Through Installations |
| For Raceway Height | 2 in |
| For Raceway Width x Height | 4 in x 2 in |
| Compatible with Product Type | 40N2 Raceways |
| Raceway Material | Plastic |
| For Raceway Width | 4 in |
| Overall Length | 4-1/2 in |
| Bend Radius | 2 in |
| Voltage | 600 V |
| Application Sector | Commercial, Residential |
| Special Features | Extremely tamper-resistant. FiberReady® 2" [51mm] fittings. Available prewired. New transition fitting options. High capacity device box options. Corner drop feed. |
| Standard | cULus Listed Raceway: File E90378 Guide RJTX. Complies with Flammability requirements of UL-5A. Fittings: File E90377 Guide RJYT. Meets Article 388 of NEC. UL Listed for up to 600V. Meets Section 12-1600 of CEC. |
| Product Type | Cable Routing |
| Compatibility | CableSmart 40N2 Large Capacity Raceway |
| Product Name | Cablesmart 40N2 Radiused Full Capacity Internal Elbow Fitting |
| Product Color | Ivory |
| cULus Listed | Yes |
| Product Environmental Profile | Yes |
| Product Line | Wiremold |
| Fittings Sub-Category | Elbows |
| Package Quantity | 1 |
