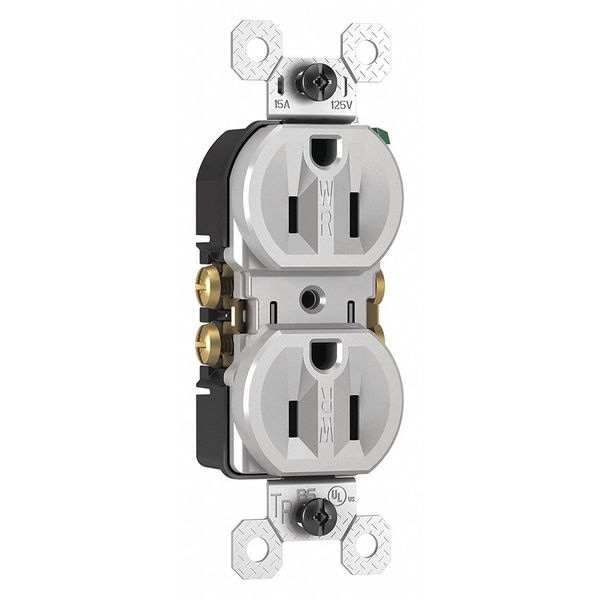

Receptacle, 15 A Amps, 125V AC, Flush Mount, Standard Duplex Outlet, 5-15R, Gray
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Application Environment | Commercial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | Yes |
| Color - Plugs and Receptacles | Gray |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| HP | 1/2 hp |
| Material | Thermoplastic Polyester |
| Special Features | Corrosion resistant |
| Number of Gangs | 1 |
| Color | Gray |
| Corrosion Resistant | Yes |
| Standards | cULus Listed |
| Sub-Category | Duplex Receptacles |
| Phase | Single |
| Amps - Plugs and Receptacles | 15 |
| Wiring Method | Back, Side |
| NEMA Receptacle Configuration | 5-15R |
| Housing Material | Polyester |
| Mount Type | Flush |
| Maximum Wire Size | 12 AWG |
| Minimum Wire Size | 14 AWG |
| Resistance Properties | Tamper Resistant, Corrosion Resistant, Weather Resistant |
| Market | Commercial |
| Surge Protection | No |
| Horsepower Rating | 0.5 HP |
| Connection Orientation | Straight |
| Housing Color | Gray |
| Current Rating | 15 A |
| Voltage Rating | 125V AC |
| Receptacle Type | Duplex |
| Grade | General Use |
| Wire Size | #12 to #14 AWG (solid wire) |
| Package Quantity | 1 |
