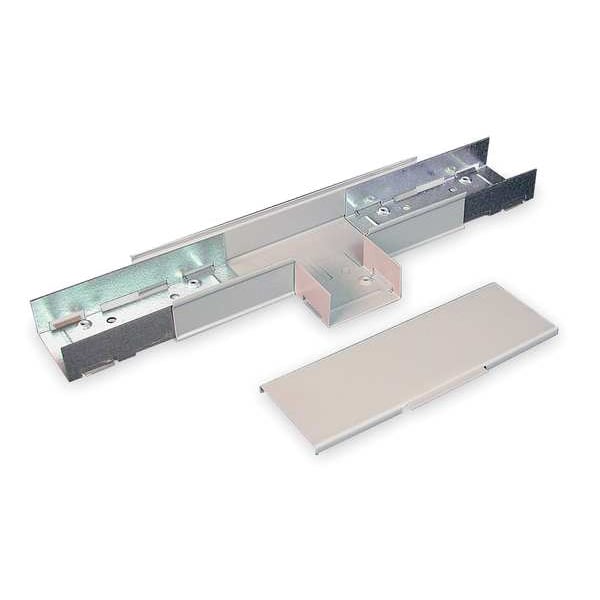

Tee, 3000 Series, 1 Channel, 4.5 in W, 1.47 in H, 10.25 in L, Gray
| Item | Tee |
|---|---|
| Fittings Sub-Category | Tees |
| Color | Gray |
| For Use With | 3000 Raceway |
| Material | Steel |
| Height | 1.47 in |
| Width | 4-1/2 in |
| Length | 10-1/4 in |
| Standards | ADA Compliant, cULus, UL Listed, UL5 |
| Series | 3000 |
| Number of Channels | 1 |
| Mounting Style | Screw On |
| Includes | Couplings |
| Length (Straight Wireway) | 10-1/4 in |
| Overall Height | 1 1/2 in |
| For Raceway Height | 1-1/2 in |
| Features | For Branching Raceway at Right Angles, Three Couplings Included |
| Compatible with Product Type | 3000 Raceways |
| Width (In.) | 4-1/2 |
| For Raceway Width | 2-3/4 in |
| Overall Width | 4 1/2 in |
| Height (In.) | 1.47 |
| Overall Length | 10-1/4 in |
| For Raceway Width x Height | 2-3/4 in x 1-15/32 in |
| Length (In.) | 10-1/4 |
| Basic Material | Steel |
| Voltage | 600 V |
| Application Sector | Commercial |
| Standard | cULus Listed Raceway:File E4376 Guide RJBT. Fittings: File E41751 Guide RJPR. Base & Blank Cover: Meets Article 386 of NEC. Meets Section 12-600 of CEC. |
| Type | Raceway |
| Special Features | Mounts easily on walls, modular furniture, under raisedfloors, or over ceiling, speeds installation: providesflexibility to bring wiring to points of use. Removable cover, provides access to wiring. |
| Compatibility | 3000 Series Raceway |
| Cable Manager Type | Fitting |
| Product Name | 3000 Tee Fitting |
| Product Type | Cable Routing |
| Product Line | Wiremold |
| Product Environmental Profile | Yes |
| cULus Listed | Yes |
| Package Quantity | 1 |
