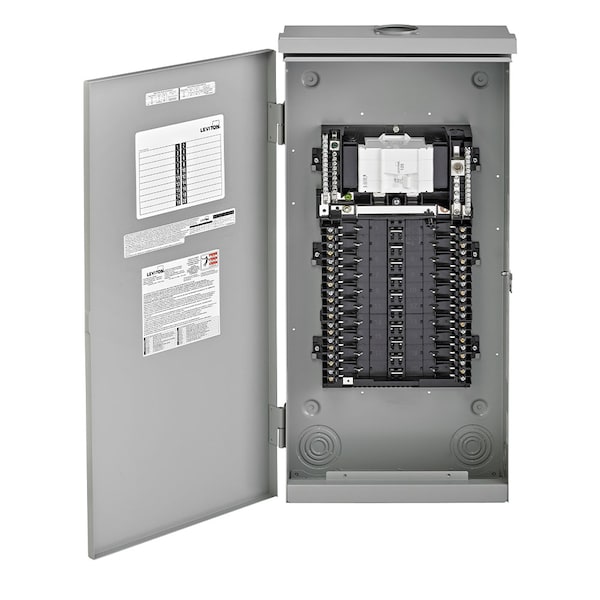

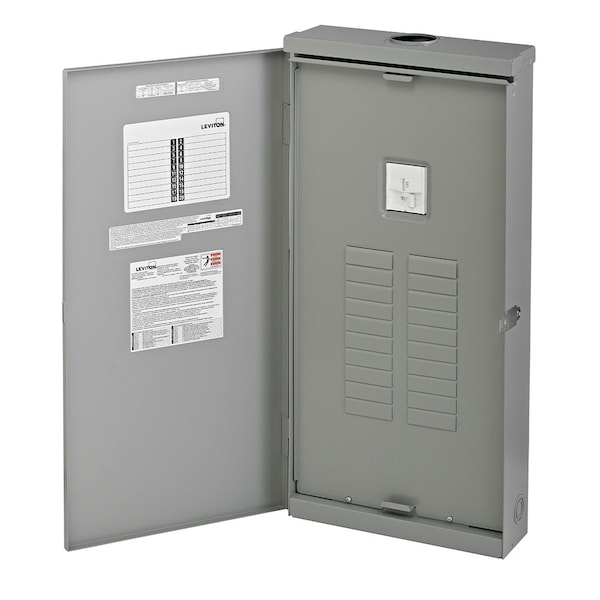

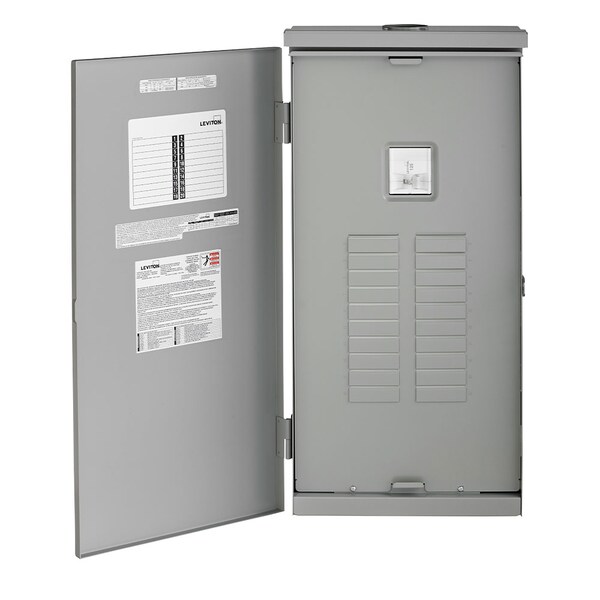

Circuit Breaker Enclosure, LP, 20 Spaces, 126A, 120/240V AC, Main Circuit Breaker
| Item | Circuit Breaker Enclosure |
|---|---|
| Main Circuit Breaker or Main Lug | Main Circuit Breaker |
| Number of Spaces | 20 |
| Amps | 126A |
| Voltage | 120/240V AC |
| Short Circuit Current Rating | 22kA |
| Height | 17-1/4 in |
| Width | 15 in |
| Depth | 4.4 in |
| Series | LP |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 3R |
| Mounting Style | Wall Mount |
| Color | Gray |
| Application | Outdoor Applications |
| Standard | UL 869A, UL 50, UL 67, UL 50E |
| Bus Rating | 225 |
| Amperage Rating | 125 |
| Number of Circuits | 20 |
| Breaker Mounting | Wall |
| Temperature Rating | -40?C to 85?C |
| Interrupt Rating | 22 |
| Wire Size | 4 to 2/0 AWG Ground/3 AWG to 300 kcmil Supply |
| Wiring Configuration | 3-wire |
| Package Quantity | 1 |
