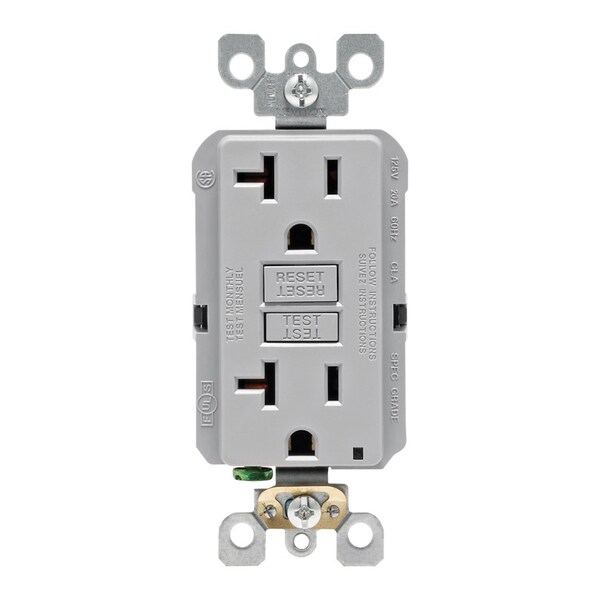

Leviton 20 amps 125 V Gray GFCI Outlet 5-20R 1 pk
| Grounding | Self Grounding |
|---|---|
| Type | Standard Duplex |
| Color | Gray |
| Voltage | 125 VAC |
| Grounding Screw | Plated Steel |
| Operating Temperature | -35C to +66C |
| Wire | 3 |
| CSA-C22.2 No. 144.1-06 | File LR-57811 |
| UL498 | Yes |
| Terminal Accom. | 14-10 AWG |
| Line Contacts | Brass |
| CSA C22.2 No. 42 | Yes |
| NEMA | WD-6, 5-20R |
| Strap Material | Galvanized Steel |
| Feature | Self-Test |
| Short Circuit Current Rating | 10KA |
| Body Material | Polycarbonate |
| At Rated Voltage | 1 HP |
| Face Material | Thermoplastic |
| Termination | Back, Side |
| UL 943 | File E48380 |
| Trip Level | Class A, 5mA plus or minus 1mA |
| Fed Spec WC-596 | Yes |
| Yoke | Zinc-Plated Steel |
| ANSI | C-73 |
| Grade | Residential/Commercial Specification Grade |
| Temperature Rise | Max 30C after 100 cycles OL at 150 percent rated current |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Standards and Certifications | UL/CSA |
| Terminal Screws | Plated Steel |
| Clamps | Brass |
| Pole | 2 |
| Amperage | 20 A |
| Dielectric Voltage | Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06 |
| Package Quantity | 1 |
