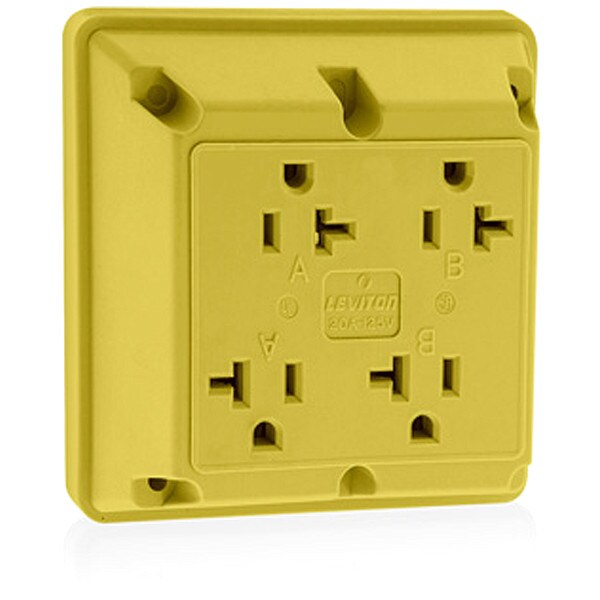

Receptacle, 20 A Amps, 125VAC, Quad Outlet, 5-20R, Yellow
| Item - Plugs and Receptacles | Outlet |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Quad |
| Application Environment | Heavy-Duty Industrial Grade |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125VAC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | Yes |
| Color - Plugs and Receptacles | Yellow |
| Wiring Method - Plugs and Receptacles | Side |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Sub-Category | Quad Receptacles |
| Wiring Method | Side |
| Standards | ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-1 and WD-6, UL 498 File E13399 |
| Voltage | 125 VAC |
| HP | 1 hp |
| Material | Nylon (Body and Face) |
| Phase | Single |
| Color | Yellow |
| Grounding | Grounded |
| Face Plate Height | 4-1/2 in |
| NEMA Enclosure Rating | Not Rated |
| Maximum Wire Size | 12 AWG |
| Surge Protection | Yes |
| Housing Color | Yellow |
| Hazardous Location Specification | Not Applicable |
| Cover Type | No Cover |
| Grade | Federal Specification |
| Includes | Strap Material |
| Face Plate Width | 4-1/2 in |
| Mount Type | Surface |
| Polarized | Yes |
| UL 94 Flammability Rating | V-2 |
| Housing Material | Nylon |
| NEMA Receptacle Configuration | 5-20R |
| Overall Depth | 1.2 in |
| Contact Material | Phosphor Bronze |
| Market | Industrial |
| Minimum Operating Temperature | -40 deg F |
| GFCI | No |
| Resistance Properties | Not Applicable |
| Voltage Rating | 125V AC |
| Number of Outlets | 4 |
| Connection Orientation | Straight |
| Receptacle Type | Quad |
| Horsepower Rating | 1 HP |
| Wire Connection Type | Screw Terminals |
| Mount Hole Center-to-Center Height | 3.4 in |
| Minimum Wire Size | 14 AWG |
| Current Rating | 20 A |
| Maximum Operating Temperature | 140 deg F |
| Includes Mounting Hardware | Yes |
| Face Material | Nylon |
| Pole | 2 |
| Torque Range | 12-14 inch pounds |
| Body Material | Nylon |
| Screw Terminal Torque | 10 to 12 in-lb |
| CSA C22.2 No. 42 | File 152105 |
| Line Contacts | Phosphor Bronze |
| UL498 | File E13399 |
| NEMA | WD-1 WD-6 |
| Amperage | 20 A |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Temperature Rise | Max 30C after 50 cycles OL at 150 percent rated current |
| Flammability | Rated V-2 per UL 94 |
| Terminal Accom. | 14-12 AWG |
| Device Type | Quadruplex Receptacle Outlet |
| Termination | Side Wire |
| Operating Temperature | -40°C to 60°C |
| Current Limiting | Full Rated Current |
| Strap Material | Galvanized Steel with Riveted Ground Contacts |
| Wire | 3 |
| Terminal Screws | Brass |
| At Rated Voltage | 1 HP |
| Grounding Screw | Plated Steel |
| ANSI | C-73 |
| Package Quantity | 1 |
