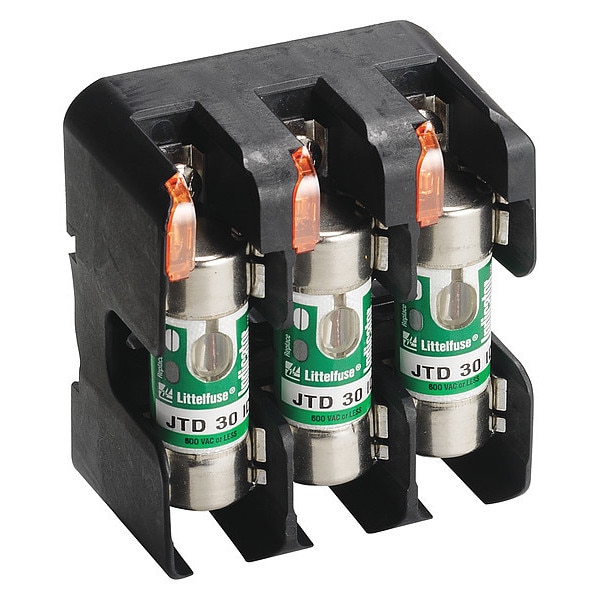

Open Fuse Block, J UL Class, 3 Poles, 0 to 30A Amp Range, 600V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | J |
| Series | LFJ |
| Number of Poles | 3 |
| Amp Range | 0 to 30A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Box Lug |
| Mounting Style | Bolt-Down; DIN Rail |
| Visual Indication | Indicating |
| Spring Reinforced Clip | Yes |
| Wire Range | 14 AWG to 6 AWG |
| Fuse Block Design | Open |
| Body Material | Thermoplastic |
| Width | 1.95 in |
| Length | 3-1/4 in |
| Height | 3.7 in |
| For Fuse Series | JTD, JLS |
| For Fuse Size | 2-1/4 in L x 13/16 in dia |
| Standards | CSA Certified, RoHS, UL Listed |
| Features | Spacing Saving Design, Universal Mounting Holes for Easy Replacement |
| Fuse Type | Industrial |
| Fits Fuse Type | Industrial |
| Fits Fuse Block Style | Non-Rejection |
| Package Quantity | 1 |
