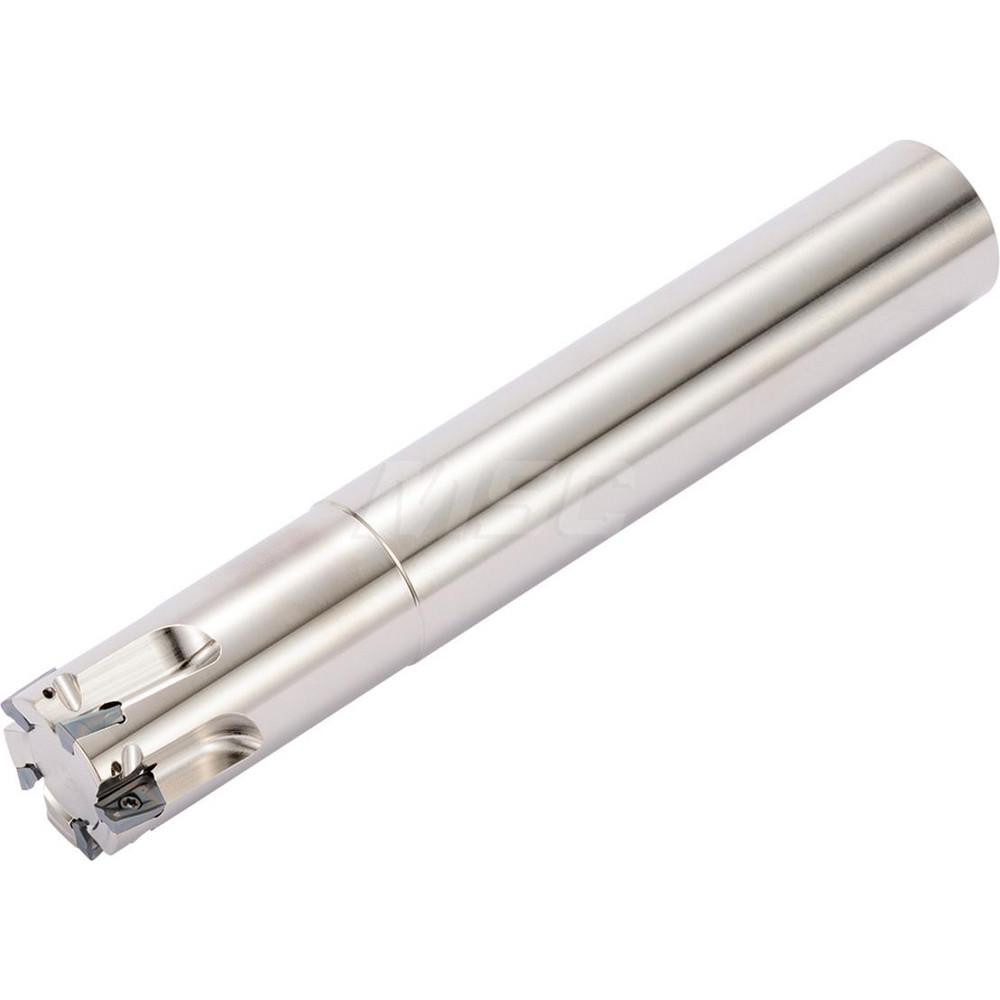

Uses (2) WPB 12;WPV 12 Inserts, Through Coolant, 122 mm OAL
| Cutting Diameter | 0.4724 in |
|---|---|
| Cutting Diameter (mm) | 12.00 |
| Overall Length (Decimal Inch) | 4.8031 |
| Overall Length (mm) | 122.00 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Shank Diameter (mm) | 12.00 |
| Insert Holding Method | Screw |
| Tool Material | Solid Carbide |
| Series | EBG-V-N |
| Lead Angle | 0 |
| Shank Length (Decimal Inch) | 3.3465 |
| Shank Length (mm) | 85.00 |
| Head Length (Decimal Inch) | 1.4567 |
| Head Length (mm) | 37.00 |
| Insert Compatibility | WPV 12; WPB 12 |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
| Country of Origin | Germany |
| undefined | undefined |
| MSC Number | MSC# 42713412 |
