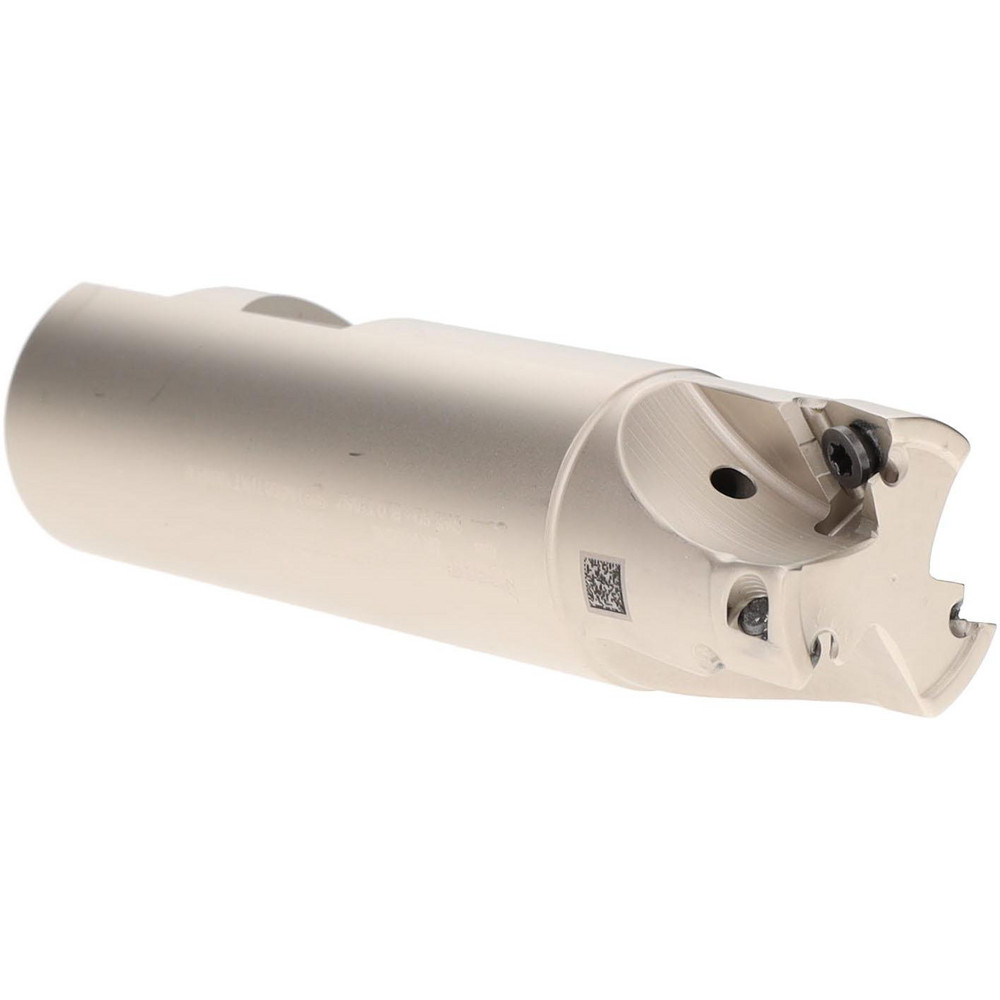

Uses (3) AD.X 1103.. Inserts, Through Coolant, 6" OAL
| Cutting Diameter | 1 |
|---|---|
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Maximum Depth of Cut (Decimal Inch) | 0.4130 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Insert Holding Method | Screw |
| Series | Univex |
| Lead Angle | 0 |
| Shank Length (Decimal Inch) | 2.3500 |
| Head Length (Decimal Inch) | 3.65 |
| Rake | Positive |
| Insert Compatibility | AD.X 1103.. |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Country of Origin | Germany |
| MSC Number | MSC# 42712729 |
