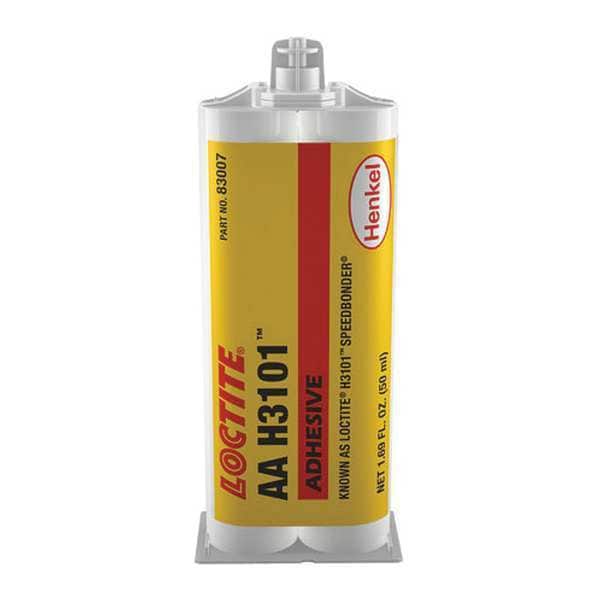

Adhesive, H3101 Series, Clear, 2 oz, Tube, 1:01 Mix Ratio, Not Rated Functional Cure
| Item | Adhesive |
|---|---|
| Type | Acrylic |
| Application | Bonding |
| Color | Clear |
| For Use On | Applicator, Mixing Tip |
| Container Size | 2 fl oz |
| Container Type | Tube |
| Functional Cure | Not Rated |
| Full Cure | 24 hr |
| Mixing Ratio | 1:01 |
| Shear Strength | 2,509 psi |
| Temp. Range | -65 to 250 deg F |
| Working Time | 20 min |
| Series | H3101 |
| Temp. Range (F) | -65 to 250 |
| Size | 1.69 fl oz |
| Structural Adhesive Type | Epoxy Adhesive |
| Work Life | 20 min |
| Epoxy Container | Dual-Cartridge |
| Epoxy Max. Temp | 250 to 299 deg F |
| Epoxy Color | Tan |
| Shear Strength (PSI) | 2,510 |
| Includes | Resin and Hardener |
| For Use With | Applicator, Mixing Tip |
| Resin Type | Acrylic |
| Application Method | Two-Part Dispenser |
| Cured Color | White |
| Compatible Mixer Tip | 833982 |
| VOC Content Weight Percentage | 0.3% |
| Materials Bonded | Metal, Plastic |
| VOC Content Weight | 2.87 g/L |
| Compatible Applicator | 720,228 |
| Included Components | Hardener, Resin |
| Alternate Product Name | AA H3101 |
| Low Odor | No |
| Primary Applications | General Purpose |
| Minimum Viscosity | 45,000 cps |
| Marine Grade | No |
| Interior/Exterior | Interior Only |
| Maximum Viscosity | 110,000 cps |
| Peel Strength | 22 lb/in |
| Minimum Performance Temperature | -65 deg F |
| Hardener Volume | 25 mL |
| Resin Color | White |
| Compatible Applicator (Grainger Part Number) | 3NVL4 |
| Non-Sagging | Yes |
| Resin Volume | 25 mL |
| Hardener Color | Tan |
| Features | Environmental Resistant, Excellent Tolerance to Off-Ratio Mixing, High Impact Strength, High Peel Strength |
| Standards | ISO 11339, ISO 13445, ISO 4587 |
| Cure Method | Ambient |
| Maximum Performance Temperature | 250 deg F |
| Full Cure Time | 24 hr |
| Total Volume | 50 mL |
| Water Resistance | Not Water-Resistant |
| Container Type - Adhesives | Dual-Cartridge |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
