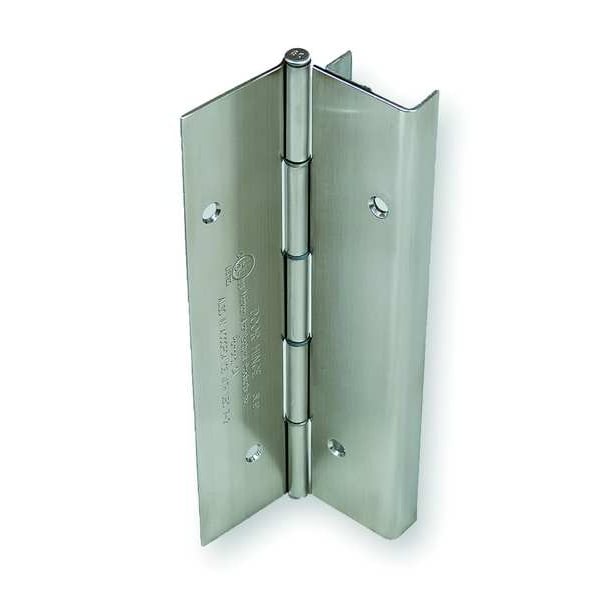

Piano Hinge, Stainless Steel, Adjustable Mounting, 1 3/4 in Leaf W x 7 ft Leaf H, Satin
| Door Leaf Height | 7 ft |
|---|---|
| Door Leaf Thickness | 1/8 in |
| Door Leaf Width | 1-3/4 in |
| Finish | Satin |
| Holes per Leaf | 2 |
| Load Capacity | 600 lb |
| Material | Stainless Steel |
| Mounting | Adjustable |
| Orientation | Non Handed |
| Pin Dia. | 1/4 in |
| Range of Motion | 90 deg |
| Required Door Thickness | 1-3/4 in |
| Features | Exterior Barrel Diameter 0.438 in (7/16 in), Fasteners Are Concealed When Door is Closed, Stainless Steel End Pins |
| Item | Piano Hinge |
| Frame Leaf Height | 7 ft |
| Frame Leaf Width | 1-3/4 in |
| Length | 7 ft |
| Overall Width | 4-9/16 in |
| Pin Material | Stainless Steel |
| Hardware | Yes |
| Holes | With |
| Frame Leaf Thickness | 1/8 in |
| Pin Type | Nonremovable |
| Ligature Resistant | No |
| Overall Knuckle Height | 1 in |
| Standards | ANSI/BHMA A156.26, ANSI/SDI 250.13 Certified |
| Height | 84 in |
| UL Fire Rating | UL10C |
| Width | 1-11/16 in |
| Bearing Type | Split Nylon |
| Color | Natural |
| Hand Orientation | Non-Handed |
| Door Thickness - Minimum | 1-3/4 in |
| Resistance Properties | Scratch-Resistant |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Number of Holes per Leaf | 2 |
| Fire Rating | 3 hr |
| Door Thickness - Maximum | 1-3/4 in |
| Pin Diameter | 1/4 in |
| Includes Hardware | Hardware Included |
| Removable Pin | No |
| Hinge Length | 10 in |
| Range of Motion - Maximum | 180 deg |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
