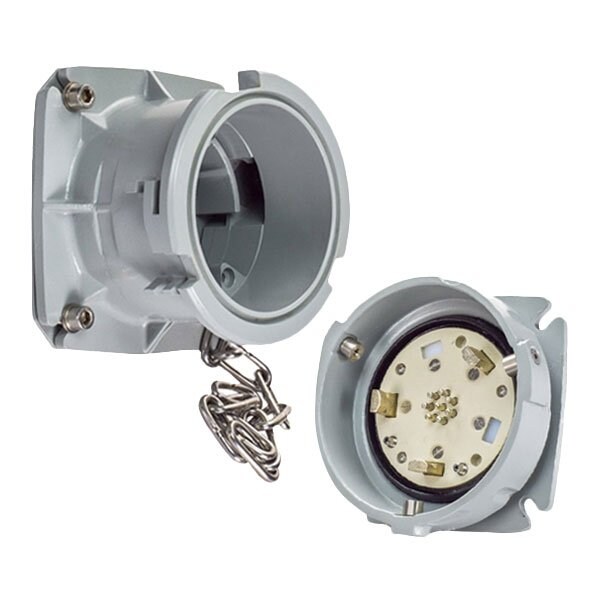

La entrada Pin & Sleeve de Meltric está diseñada para ofrecer una conexión segura y confiable de 300 A a 480V CA. Con terminal de prensaestopas de 2 AWG - 750 MCM, esta entrada es ideal para aplicaciones industriales exigentes.
| Item | Pin & Sleeve Inlet |
|---|---|
| Current Rating | 300 A |
| Voltage Rating | 480V AC |
| Phase | Lug Terminal |
| Housing Color | Gray |
| Cap Type | No Cap or Cover |
| Standards | UL 1682; CSA; C22.2 No. 182.1-13 |
| Number of Aux. Outputs | +8 AUX |
| Contact Configuration | 2 P+G |
| Impact Rating | IK10 |
| Receptacle Type | Aluminum Painted |
| Voltage | 480 VAC |
| Operating Temp. Range | -40F(-40C) to 140F (60C) |
| Material | Metal |
| Package Quantity | 1 |
