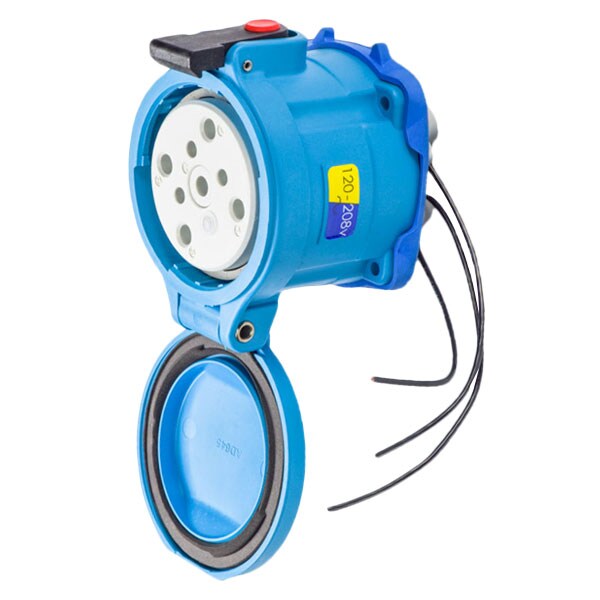

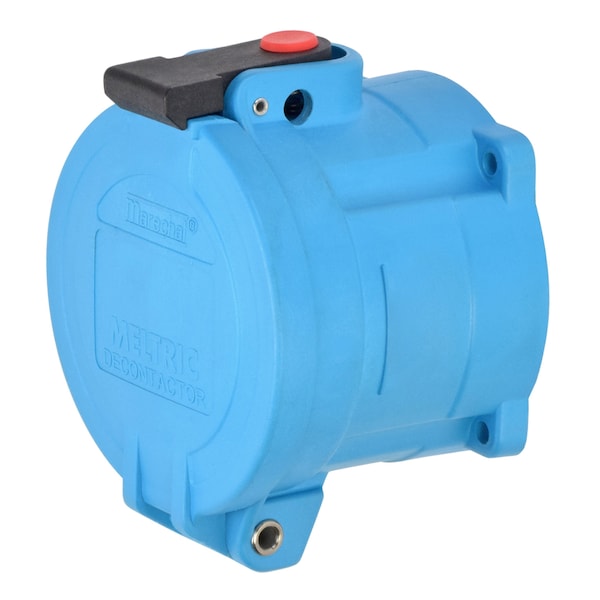

Este receptáculo de pasador y enchufe de Meltric está diseñado para manejar corriente de 100 amperios a 120/208V AC. Cuenta con 3 polos y cumple con la clasificación NEMA 3R para uso en exteriores. Es ideal para aplicaciones industriales y comerciales que requieren una conexión segura y confiable.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 100 A |
| Voltage Rating | 120/208V AC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | IP55 |
| NEMA Enclosure Rating | 3R |
| Wire Connection Type | Screw Terminals |
| Flange Type | Flanged |
| Housing Color | Blue |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682, UL508 |
| Voltage | 120/208V AC |
| Body Material | Polyester |
| HP | 5, 20 |
| NEMA Rating | 3R |
| Hz | 60 Hz |
| Wire Temperature Rating | 60 deg C |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Wire Size | 14 AWG; 10 AWG to 2 AWG |
| Color Code | Blue |
| Number of Aux. Outputs | +3 AUX |
| Keying Position | 23 |
| Use With Installation Accessory Size | 4 |
| Terminal Connection | Prewired |
| Tightening Torque | Phase: 48 IN-LBS / 5.4 N-M |
| Operating Temp. Range | -40C to 60C |
| Auxiliary Contact Rating | 0.6 A |
| Terminal Type | Screw terminal |
| Impact Rating | IK08 |
| Wire Strip Length | Phase: 15/16 in |
| Auxiliary Contact Voltage Rating | 600VAC |
| Load Break Amp Rating | 150 A |
| Contact Configuration | 3P+N+G |
| Package Quantity | 1 |
