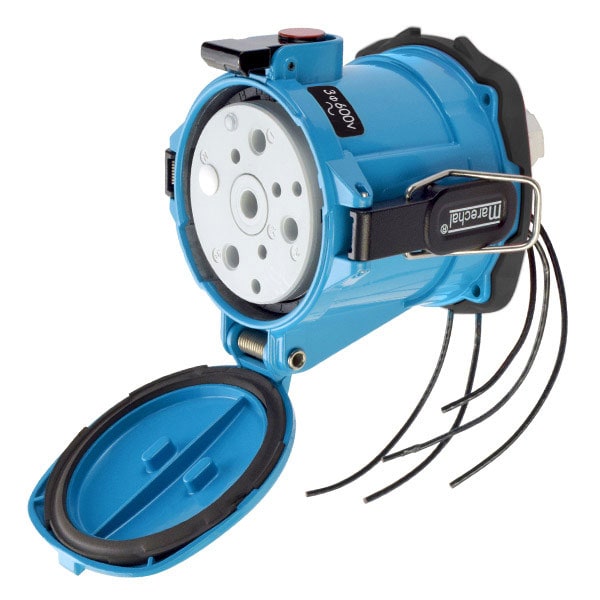

Este receptáculo Meltric Pin & Sleeve de 150 A y 600V CA es ideal para aplicaciones trifásicas. Con 3 polos y estilo 2 de puesta a tierra, cumple con las normas NEMA 4X para garantizar su durabilidad en entornos exigentes.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 150 A |
| Voltage Rating | 600V AC |
| Phase | Three |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | IP69K, IP67, IP66 |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Screw Terminals |
| Flange Type | Flanged |
| Grounding Style | Style 2 |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| Standards | cCSAus, 155873, C22.2 No. 94.2-15, C22.2 No. 182.1-13, ULC, E79796, UL 1682, UL 2682, UL508 |
| Resistance Properties | Corrosion Resistant, UV AC/Sunlight Resistant, Watertight |
| NEMA Rating | 4X |
| Voltage | 600V AC |
| Body Material | Aluminum |
| HP | 75 |
| Auxiliary Contact Rating | 0.3 A |
| Auxiliary Contact Voltage Rating | 600VAC |
| Wire Temperature Rating | 60 deg C |
| Hz | 60 Hz |
| Impact Rating | IK10 |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Number of Aux. Outputs | +5 AUX |
| Terminal Type | Screw terminal |
| Use With Installation Accessory Size | 5 |
| Operating Temp. Range | -40C to 60C |
| Contact Configuration | 3 P+G |
| Load Break Amp Rating | 225 A |
| Color Code | Black |
| Wire Strip Length | Phase: 1-3/16 in |
| Keying Position | 6 |
| Tightening Torque | Phase: 90 IN-LBS / 10.2 N-M |
| Terminal Connection | Prewired |
| Wire Size | 14 AWG to 14 AWG; 4 AWG to 2/0 AWG |
| Load Break Amp Rating_Abnormal Overload | 225 A |
| Package Quantity | 1 |
