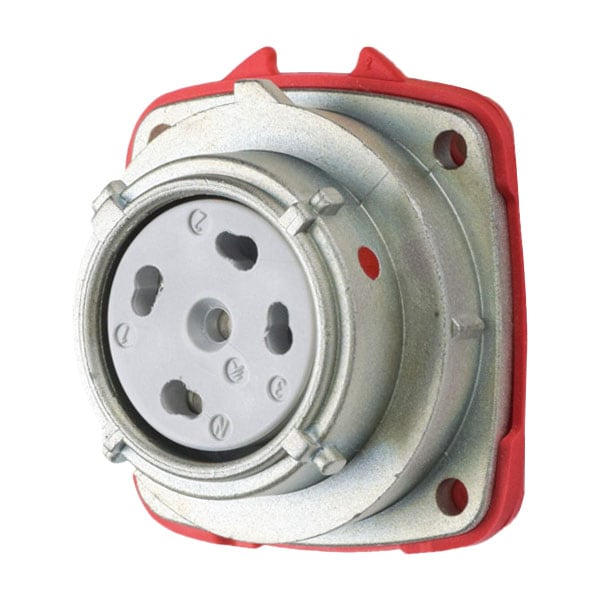

Este receptáculo Pin & Sleeve de Meltric es ideal para corriente de 20 A y voltaje de 120/208V AC. Con 3 polos y certificación NEMA 4X, garantiza un rendimiento seguro y confiable en entornos industriales exigentes.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 20 A |
| Voltage Rating | 120/208V AC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | IP67, IP66 |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Screw Terminals |
| Housing Color | Metal |
| Cap Type | No Cap or Cover |
| Standards | cCSAus, C22.2 No. 182.1-07, UL 1682 |
| Voltage | 120/208V AC |
| Use With | Mating Box MB3 |
| NEMA Rating | 4X |
| Body Material | Zamak |
| Keying Position | 16 |
| Operating Temp. Range | -40C to 60C |
| Tightening Torque | Phase: 8 IN-LBS / 0.9 N-M |
| Use With Installation Accessory Size | 1 |
| Wire Strip Length | Phase: 3/8 in |
| Impact Rating | IK09 |
| Contact Configuration | 3P+N+G |
| Wire Size | 14 AWG to 8 AWG |
| Color Code | Blue |
| Terminal Type | Screw terminal |
| Package Quantity | 1 |
