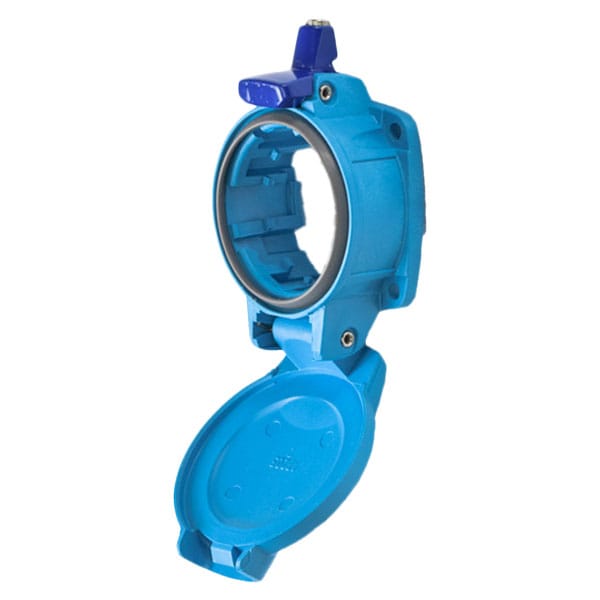

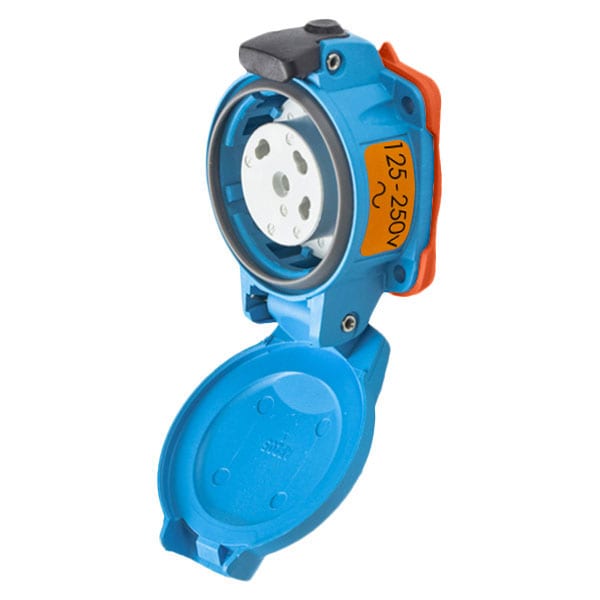

Pin & Sleeve Receptacle, 20 A, 125/250V AC, 2 Pole, NEMA 4X
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 20 A |
| Voltage Rating | 125/250V AC |
| Number of Poles | 2 |
| Number of Wires | 3 |
| IP Rating | IP67, IP66 |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Screw Terminals |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| Standards | cCSAus, C22.2 No. 182.1-07, UL 1682 |
| Body Material | Polyester |
| Voltage | 125/250V AC |
| NEMA Rating | 4X |
| Keying Position | 7 |
| Hz | 60 Hz |
| Contact Configuration | 2P+N+G |
| Color Code | Orange |
| Terminal Type | Screw terminal |
| Tightening Torque | Phase: 8 IN-LBS / 0.9 N-M |
| Wire Size | 14 AWG to 8 AWG |
| Wire Strip Length | Phase: 3/8 in |
| Use With Installation Accessory Size | 1 |
| Operating Temp. Range | -40C to 60C |
| Impact Rating | IK08 |
| Package Quantity | 1 |
