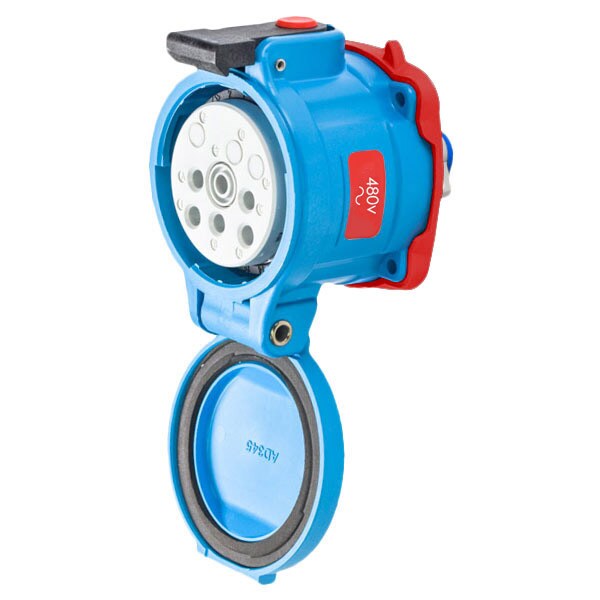

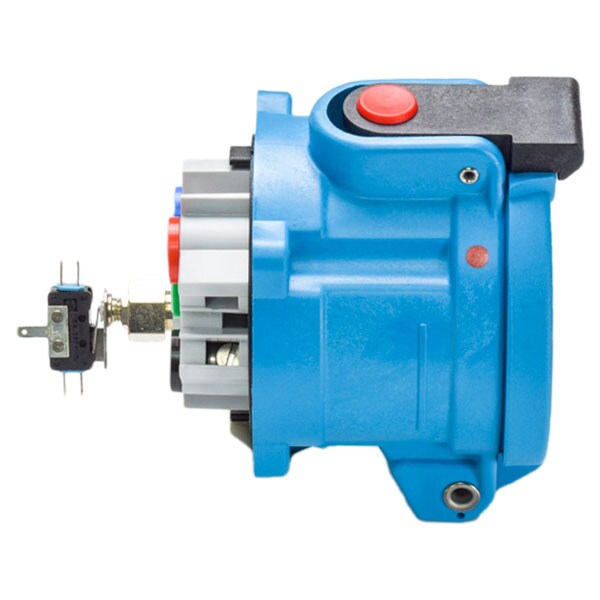

Este receptáculo de clavija y enchufe de Meltric es ideal para aplicaciones de 30 amperios y 480V AC. Cuenta con 3 polos y cumple con la norma NEMA 4X para una protección superior en entornos húmedos y corrosivos.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 30 A |
| Voltage Rating | 480V AC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | IP67, IP66 |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Screw Terminals |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| Standards | UL508 |
| Body Material | Polyester |
| NEMA Rating | 4X |
| Voltage | 480V AC |
| HP | 15 |
| Tightening Torque | Phase: 15 IN-LBS / 1.7 N-M |
| Wire Size | 14 AWG to 4 AWG |
| Number of Aux. Outputs | +3 AUX |
| Hz | 60 Hz |
| Contact Configuration | 3 P+G |
| Color Code | Red |
| Impact Rating | IK08 |
| Auxiliary Contact Rating | 1.2 A |
| Load Break Amp Rating | 45 A |
| Auxiliary Contact Voltage Rating | 600VAC |
| Operating Temp. Range | -40C to 60C |
| Terminal Type | Screw terminal |
| Wire Strip Length | Phase: 3/4 in |
| Use With Installation Accessory Size | 3 |
| Wire Temperature Rating | 60 deg C |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Keying Position | 4 |
| Package Quantity | 1 |
