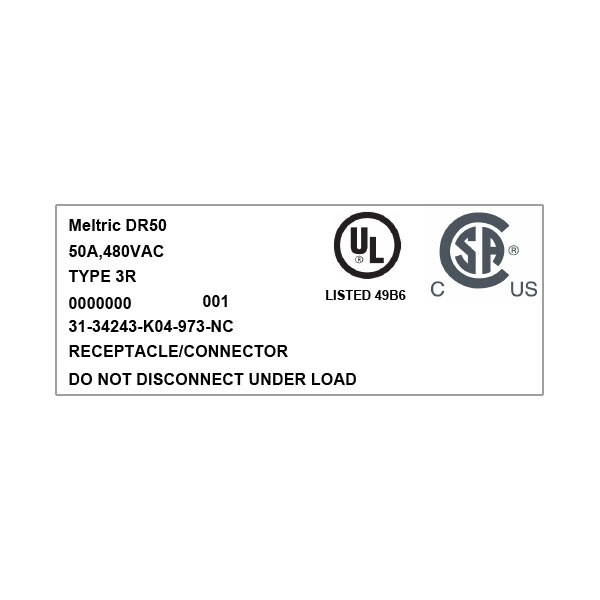

La toma de corriente Meltric Pin & Sleeve de 50 A y 480V AC con 3 Polos y NEMA 3R proporciona una conexión segura y confiable para aplicaciones industriales.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 50 A |
| Voltage Rating | 480V AC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | IP55 |
| NEMA Enclosure Rating | 3R |
| Wire Connection Type | Screw Terminals |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 1682, UL508 |
| Voltage | 480V AC |
| Use With | Mating Box MB3 |
| Body Material | Polyester |
| Keying Position | 24 |
| Operating Temp. Range | -40C to 60C |
| Hz | 60 Hz |
| Wire Size | 14 AWG; 14 AWG to 4 AWG |
| Wire Temperature Rating | 60 deg C |
| Auxiliary Contact Rating | 1.2 A |
| Impact Rating | IK08 |
| Wire Strip Length | Auxiliary: 1/2 in, Phase: 9/16 in |
| Color Code | Red |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Terminal Type | Screw terminal |
| Number of Notch Positions | 24 |
| Load Break Amp Rating | 50 A |
| Use With Installation Accessory Size | 3 |
| Tightening Torque | Auxiliary: 15 IN-LBS / 1.7 N-M; Phase: 15 IN-LBS / 1.7 N-M |
| Number of Aux. Outputs | +3 AUX |
| Terminal Connection | Screw |
| Contact Configuration | 3 P+G |
| Auxiliary Contact Voltage Rating | 600VAC |
| Load Break Amp Rating_Abnormal Overload | 75 A |
| Package Quantity | 1 |
