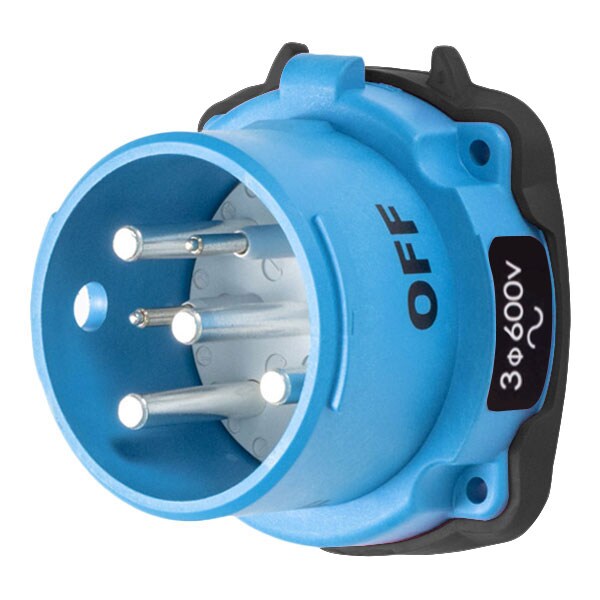

Este receptáculo de clavija y enchufe Meltric está diseñado para manejar corriente de 50 amperios y una capacidad de 600V CA. Conecta de manera segura y confiable equipos eléctricos en entornos industriales, cuenta con protección NEMA 4X, siendo resistente al agua y al polvo.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 50 A |
| Voltage Rating | 600V AC |
| Phase | Three |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | IP67, IP66 |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Screw Terminals |
| Housing Color | Blue |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 1682, UL508 |
| Use With | Mating Box MB3 |
| Voltage | 600V AC |
| NEMA Rating | 4X |
| Body Material | Polyester |
| Material | PBT |
| Impact Rating | IK08 |
| Load Break Amp Rating | 50 A |
| Terminal Type | Screw terminal |
| Keying Position | 18 |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Operating Temp. Range | -40C to 60C |
| Wire Size | 14 AWG; 14 AWG to 4 AWG |
| Auxiliary Contact Voltage Rating | 600VAC |
| Wire Temperature Rating | 60 deg C |
| Hz | 60 Hz |
| Number of Aux. Outputs | +2 AUX |
| Contact Configuration | 3 P+G |
| Tightening Torque | Auxiliary: 15 IN-LBS / 1.7 N-M; Phase: 15 IN-LBS / 1.7 N-M |
| Auxiliary Contact Rating | 1.2 A |
| Use With Installation Accessory Size | 3 |
| Wire Strip Length | Auxiliary 5/8 in 7/8 in, Phase |
| Terminal Connection | Screw |
| Color Code | Black |
| Number of Notch Positions | 24 |
| Load Break Amp Rating_Abnormal Overload | 75 A |

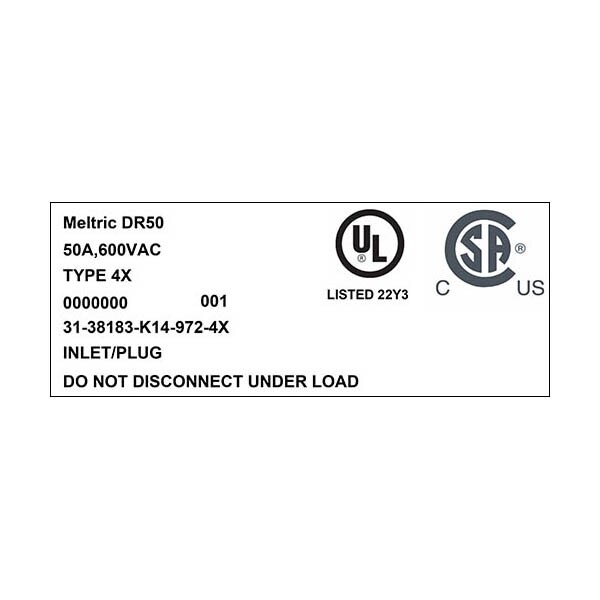

| Series | DR50 |
| Dimensions | 3.23 in H x 2.8 in D |
| Temperature Rating | -40 to 140 °F |
| Enclosure | IP54 |
| Package Quantity | 1 |
