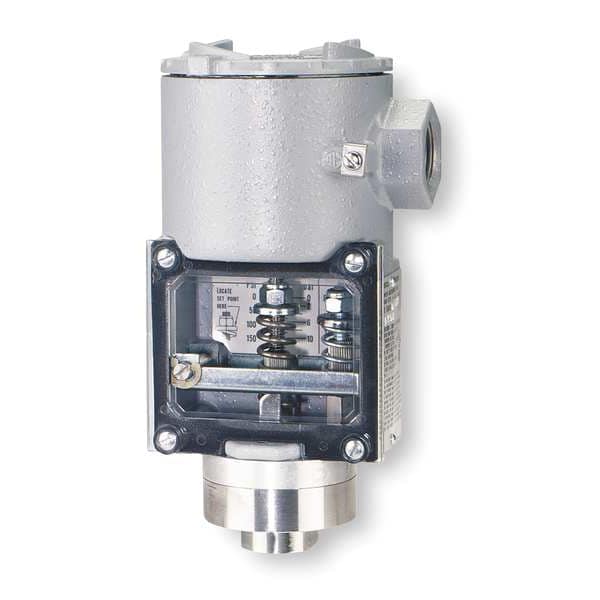

Interruptor de presión, (1) puerto, 1/4 pulgadas hembra NPT, SPDT, 10 a 150 psi, Acción estándar.
| Item | Pressure Switch |
|---|---|
| Pressure Switch Port Type | (1) Port, 1/4 in FNPT |
| Pressure Switch Differential | 4 to 7.5 psi |
| Pressure Switch Range | 10 to 150 psi |
| Pressure Switch Electrical Contact Form | SPDT |
| Pressure Switch Action | Standard |
| Port Type | 1/4 in FNPT, Port |
| Action | Standard |
| Actuation Type | Diaphragm |
| Series | SA11 |
| AC Contact Rating | 15A @ 125/250/480 V |
| DC Contact Rating | 0.25A @ 250V, 0.5A @ 125V |
| NEMA Rating | 4x |
| Differential | 4 to 7.5 psi |
| Contact Form | SPDT |
| Range | 10 to 150 psi |
| Standards | CSA, UL Listed |
| IP Rating | IP66, IP54 |
| Manufacturer Warranty Length | 1 yr |
| Overall Width | 4 in |
| Hazardous Location Specification | Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group E, F, G |
| Operating Temperature - Maximum | 180 deg F |
| Operating Temperature - Minimum | -30 deg F |
| Differential Pressure - Minimum | 4 psi |
| NEMA Enclosure Rating | 4X |
| Pressure - Minimum | 10 psi |
| Overall Depth | 3.97 in |
| Differential Pressure - Maximum | 7.5 psi |
| Pressure - Maximum | 150 psi |
| Pressure Connection Type | 1/4" FNPT |
| Number of Pressure Connection Ports | 1 |
| Deadband Adjustability | Adjustable |
| Overall Height | 7.43 in |
| Proof Pressure | 1,200 psig |
| Package Quantity | 1 |
