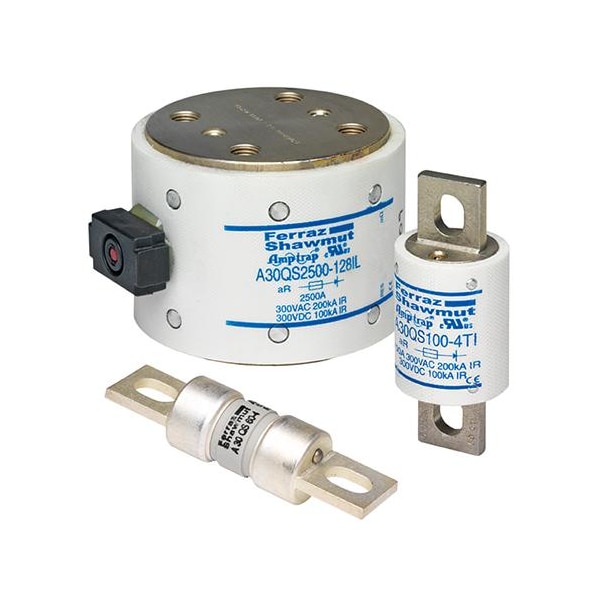

Automotive Fuse, A30QS Series, 350A, 300V DC, Non-Indicating
| Item | Automotive Fuse |
|---|---|
| Series | A30QS |
| Speed | Very Fast-Acting |
| Amps | 350A |
| DC Voltage Rating | 300V DC |
| AC Voltage Rating | 300V AC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 63kA |
| Body Style | Blade |
| Body Material | GMG |
| Length | 3.84 in |
| Equivalent Brand and Series | Bussmann FWX, Littelfuse L25S, Mersen A30QS |
| Equivalent Series | A30QS, FWX, L25S |
| Fits Fuse Block Style | Non-Rejection |
| APPLICATIONS | Protection of 300V (or less) heavy duty rectifiers and similar heavy duty power supplies |
| AC Max I.R./Breaking Capacity: I1 | 52 kA |
| Connection/Terminal Type | Blade |
| Connection/Terminal Material | Tin-Plated Brass |
| Body/Insulating Material | GMG |
| APPROVALS & STANDARDS | UL recognized component UL File E60314; AC: UL guide no. JFHR2 (35-4500A) |
| Mounting | Bolted |
| Package Quantity | 1 |
