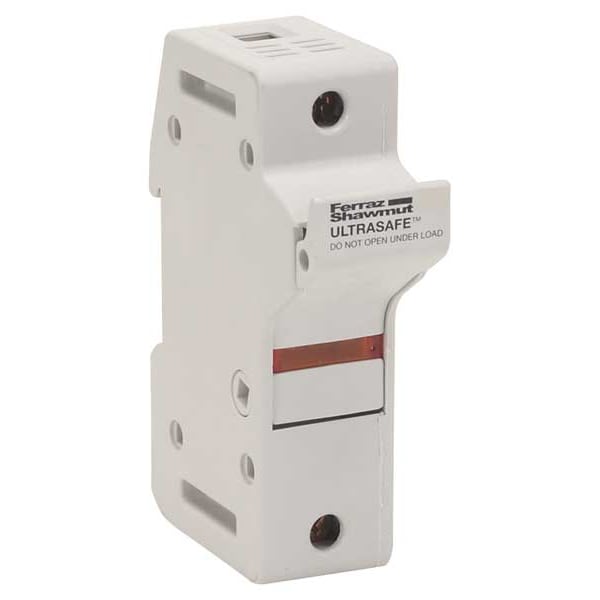

Finger Safe Fuse Block, J UL Class, 1 Poles, 31 to 60A Amp Range, 600V AC/DC Volt Rating

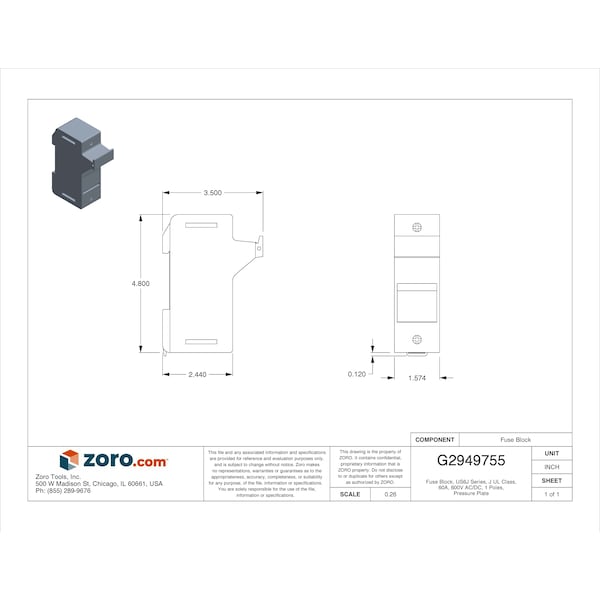

| CAD Available | Yes |
|---|---|
| Item | Finger Safe Fuse Block |
| UL Class | J |
| Series | US6J |
| Number of Poles | 1 |
| Amp Range | 31 to 60A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Pressure Plate |
| Mounting Style | DIN-Rail |
| Visual Indication | Indicating |
| Wire Range | 14 AWG to 2 AWG |
| Fuse Block Design | Finger-Safe |
| Body Material | Polyamide |
| Width | 1.57 in |
| Length | 3-1/2 in |
| Height | 4.8 in |
| For Fuse Series | AJT, A4J |
| Standards | CSA Certified, UL Listed |
| Fuse Holder Code | AA |
| Fuse Type | Industrial |
| For Fuse Size | 2-3/8 in L x 1-1/16 in dia |
| Short Circuit Current (KA) | 200 kA |
| Frequency Range (Hz) | 50/60 Hz |
| Max. Operating Temp. | 80 deg C |
| Includes Communication Feature | No |
| Includes Auxiliary Contact | No |
| Fits Fuse Block Style | Non-Rejection |
| Fuse Block or Holder AC Voltage Rating | 600VAC |
| Fuse Installation Method | Clip-in |
| Wire Size | 14 to 2 AWG |
| APPROVALS & STANDARDS | UL Listed, guide IZLT File E52283; CSA Certified C22.2, class 6225 01, File 32169; IEC certified 60269-1, 60947-3 |
| Max Fuse Rating | 60 A |
| Wiring range | #2 to 14 AWG |
| Rated Torque (In.-Lb.) | 45 in-lb |
| APPLICATIONS | 600 volt motors, transformers, lighting, heating, control circuits, general loads; Non-load disconnect |
| Short Circuit Current Rating (SCCR) | 200 |
| Indication System Type | LED |
| Fuse Block or Holder DC Voltage Rating | 600VDC |
| Installation Mounting | DIN Rail |
| Short Description | Fuse Holders 600V 60A pole Light Indicator |
| Package Quantity | 1 |
