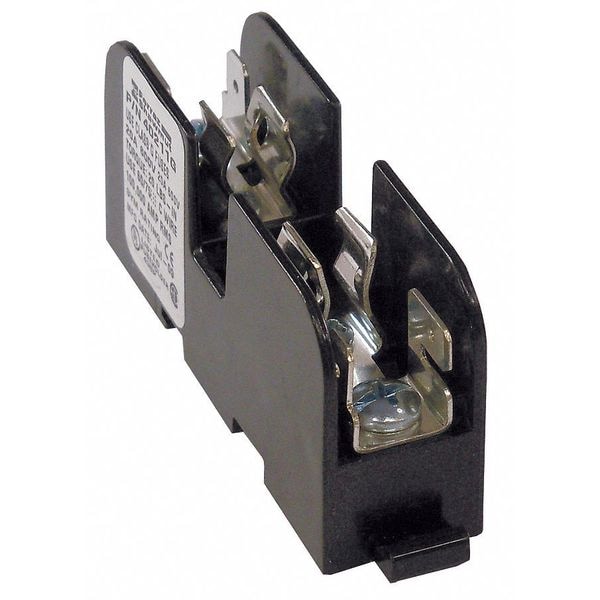

Open Fuse Block, G UL Class, 1 Poles, 0 to 15A Amp Range, 600V AC/DC Volt Rating
| Item | Open Fuse Block |
|---|---|
| UL Class | G |
| Series | GFB |
| Number of Poles | 1 |
| Amp Range | 0 to 15A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Screw |
| Mounting Style | Bolt-Down; DIN Rail |
| Visual Indication | Non-Indicating |
| Spring Reinforced Clip | No |
| Fuse Block Design | Open |
| Body Material | Polycarbonate |
| Standards | CSA Certified, UL Listed |
| Fuse Holder Code | AG |
| Width | 0.85 in |
| For Fuse Series | AG |
| Fuse Type | Industrial |
| Length | 3.05 in |
| Height | 1.45 in |
| Features | Unique Adder Block Design |
| For Fuse Size | 1-19/64 in L x 13/32 in dia |
| Wire Range | 14 AWG to 10 AWG |
| Short Circuit Current (KA) | 100 kA |
| Frequency Range (Hz) | 50/60 Hz |
| Max. Operating Temp. | 80 deg C |
| Fits Fuse Block Style | Non-Rejection |
| Installation Mounting | Screw Mount or DIN Rail |
| Short Description | Fuse Bases 600V 15A Class G 1-pole Tin-Plate Copper Screw with Reinforced Clip |
| Max Fuse Rating | 15 A |
| Short Circuit Current Rating (SCCR) | 100 |
| Fuse Installation Method | Clip-in |
| APPROVALS & STANDARDS | All fuse blocks meet the requirements of UL 4248; UL Listed guide IZLT, File E52283; CSA Certified class 6225, File 32169 |
| Rated Torque (In.-Lb.) | 20 in-lb |
| Package Quantity | 1 |
