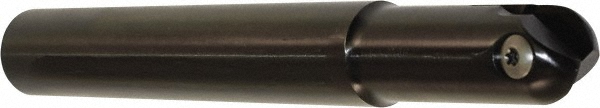

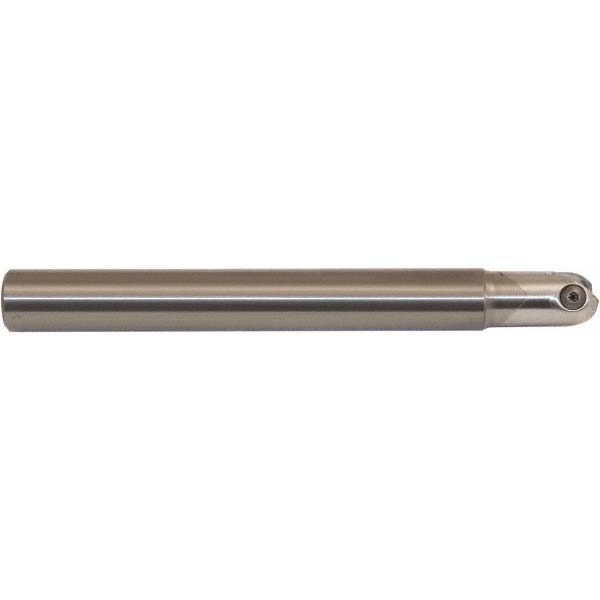

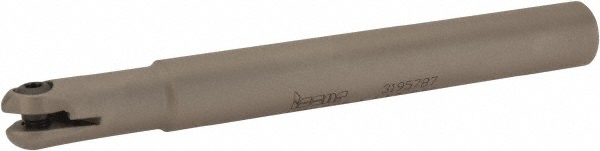

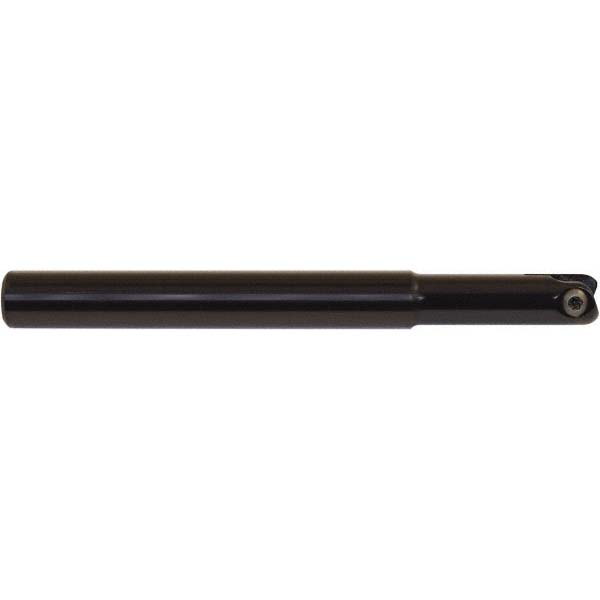

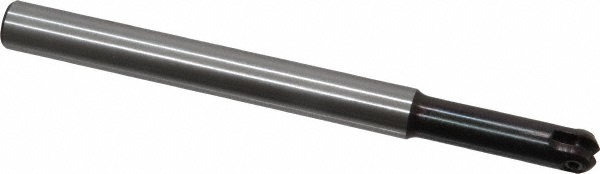

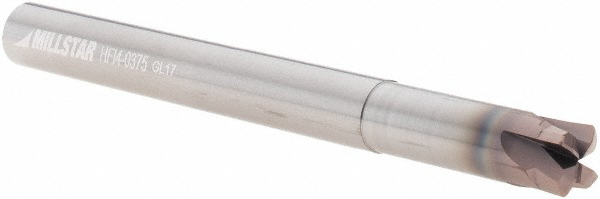

Uses VBD & VRBS Inserts, 1/2" Cylindrical Shank
| Cutting Diameter (Decimal Inch) | 0.2500 |
|---|---|
| Tool Material | Tool Steel |
| Maximum Depth of Cut (Inch) | 2-3/4 |
| Maximum Depth of Cut (Decimal Inch) | 2.7500 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |

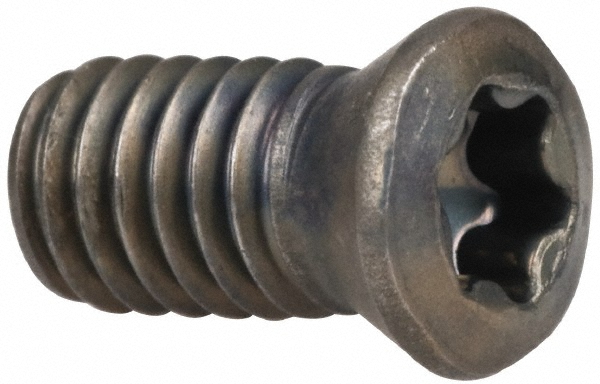

| Insert Holding Method | Screw |
| Compatible Insert Style | VRBS; VBD |
| Toolholder Style | TAV |
| Overall Length (Decimal Inch) | 3.0000 |
| Series | TAV |
| Tool Application | Profile Milling |
| Weldon Flat | No |
| Neck Diameter (Decimal Inch) | 0.2500 |
| Cutting Diameter (Inch) | 1/4 |
| Coolant Through | No |
| Number of Ball Nose Inserts | 1 |
| UNSPSC Code | 27112803 |
| undefined | undefined |
| MSC Number | MSC# 35889179 |
