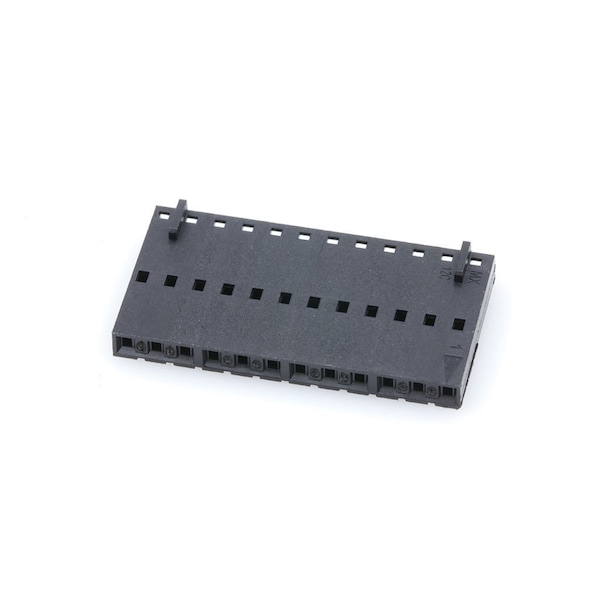

Conector de placa, 12 contactos, 1 fila, macho o hembra, recto, paso de 0.1 pulgadas, terminal de engarce.
| Color | Black |
|---|---|
| Number of Contacts | 12 |
| Application | Signal, Wire-to-Board |
| Series | 70066 |
| Standards | CSA Certified, UL E29179 |
| Max. Temp. | 105 deg C |
| Hole Center to Center | 2.54 mm |
| Connector Type | Receptacle |
| Material | Alloy |
| Flammability Rating | UL 94V-0 |
| Number of Rows | 1 |
| Glow-Wire Capable | No |
| Product Name | SL |
| Lock to Mating Part | No |
| CSA | LR19980 |
| Pitch - Mating Interface | 2.54 mm |
| Circuits (maximum) | 12 |
| Material - Resin | Polyester Alloy |
| UL | E29179 |
| Keying to Mating Part | Yes |
| Flammability | 94 V to 0 |
| Temperature Range - Operating | -40° to +105°C |
| Stackable | Yes |
| Package Quantity | 1 |
