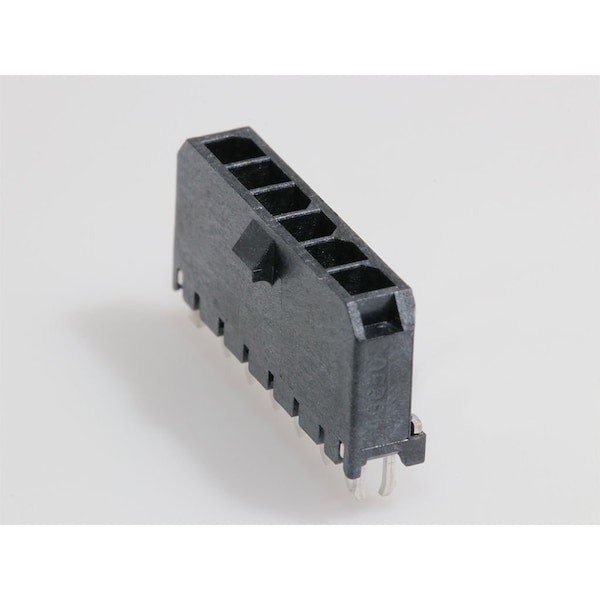

Board Connector, 6 Contact(S), 1 Row(S), Male, Straight, 0.118 Inch Pitch, Solder Terminal, Black
| Color | Black |
|---|---|
| Max. Voltage | 600 V |
| Standards | CSA Certified, UL E29179 |
| Features | Glow-Wire Capable; Surface Mount Compatible |
| Terminal Type | Through Hole - Kinked Pin |
| Hole Center to Center | 3 mm |
| Max. Temp. | 260 deg C |
| Material | High Temperature Thermoplastic |
| Flammability Rating | UL 94V-0 |
| Contact Finish | Gold Plated |
| Number of Rows | 1 |
| Contact Plating Thickness | 0.381 µm |
| Current Rating | 8.5 A |
| Number of Contacts | 6 |
| Terminal Finish | Tin Plated |
| Package Quantity | 1 |
