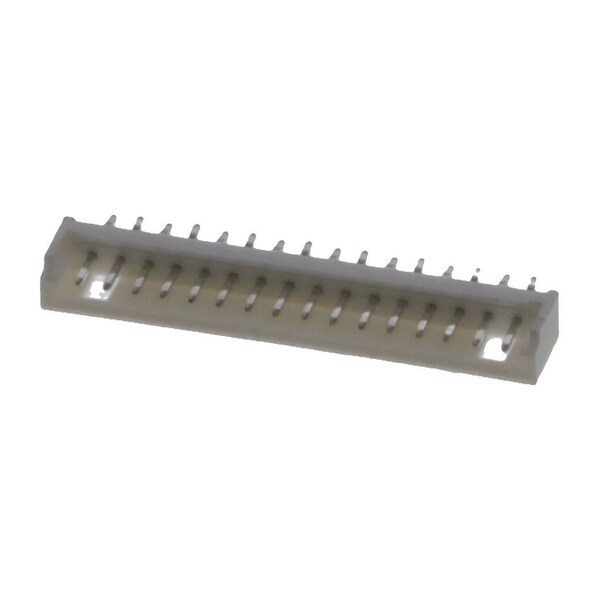

Board To Board & Mezzanine Connectors 2.0 Btb Wafer Assy 1 Fer Assy 16Ckt White
| Material | Polyester |
|---|---|
| Max. Voltage | 125 V |
| Application | Board-to-Board, Signal |
| Series | 53290 |
| Color | Natural |
| Hole Center to Center | 2 mm |
| Number of Rows | 1 |
| Contact Plating Thickness | 1.016 µm |
| Contact Finish | Tin Plated |
| Max. Temp. | 105 deg C |
| Sub-Category | PCB Headers |
| Terminal Type | Through Hole |
| Terminal Finish | Tin Plated |
| Number of Contacts | 16 |
| Current Rating | 1.5 A |
| First Mate / Last Break | No |
| Component Type | PCB Header |
| Material - Plating Termination | Tin |
| Lock to Mating Part | Yes |
| Shrouded | Partial |
| Temperature Range - Operating | -40° to +105°C |
| PC Tail Length | 3.2 mm |
| Pitch - Mating Interface | 2 mm |
| Material - Plating Mating | Tin |
| PCB Locator | No |
| Polarized to Mating Part | Yes |
| Product Name | SlimStack |
| Durability (mating cycles max) | 30 |
| Current - Maximum per Contact | 1.5 A |
| Guide to Mating Part | No |
| Mated Width | 6 mm |
| Circuits (Loaded) | 16 |
| PCB Retention | Yes |
| Keying to Mating Part | None |
| PCB Thickness - Recommended | 1.6 mm |
| Orientation | Vertical |
| Material - Resin | Polyester |
| Plating min - Mating | 1.016 um |
| Mated Height | 3.95 mm |
| Material - Metal | Brass |
| Glow-Wire Capable | No |
| Polarized to PCB | No |
| Breakaway | No |
| Package Quantity | 1 |
