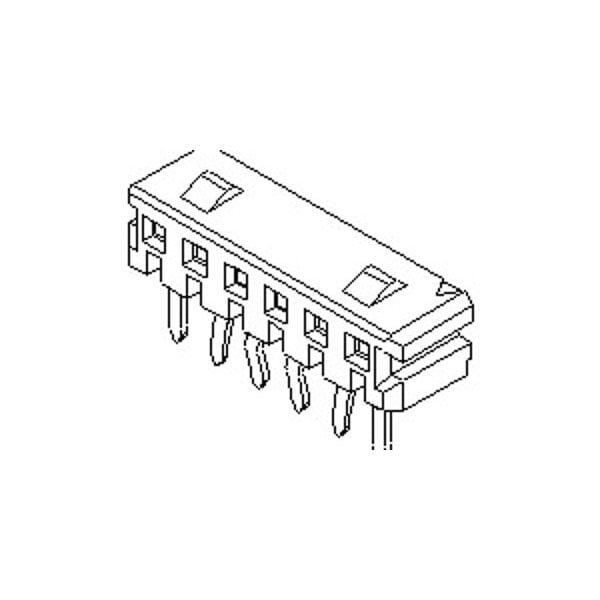

Board To Board & Mezzanine Connectors 9Ckt R/A B-B Hous A Kt R/A B-B Hous Assy
| Material | Polyester |
|---|---|
| Max. Voltage | 125 V |
| Application | Board-to-Board, Signal |
| Series | 52418 |
| Standards | UL E29179 |
| Color | Natural |
| Contact Plating Thickness | 0.914 µm |
| Number of Contacts | 9 |
| Max. Temp. | 105 deg C |
| Sub-Category | PCB Receptacles |
| Terminal Finish | Tin Plated |
| Current Rating | 1.5 A |
| Hole Center to Center | 2 mm |
| Number of Rows | 1 |
| Terminal Type | Through Hole - Kinked Pin |
| Contact Finish | Tin Plated |
| Material - Metal | Phosphor Bronze |
| Durability (mating cycles max) | 30 |
| Product Name | SlimStack |
| Mated Width | 6 mm |
| Component Type | PCB Receptacle |
| Current - Maximum per Contact | 1.5 A |
| UL | E29179 |
| PCB Retention | Yes |
| Material - Plating Mating | Tin |
| PCB Thickness - Recommended | 1.6 mm |
| Temperature Range - Operating | -40° to +105°C |
| Polarized to PCB | No |
| Material - Resin | Polyester |
| Mated Height | 3.95 mm |
| Pitch - Mating Interface | 2 mm |
| PCB Locator | No |
| Plating min - Mating | 0.914 um |
| Circuits (Loaded) | 9 |
| Material - Plating Termination | Tin |
| Orientation | Right Angle |
| Glow-Wire Capable | No |
| Package Quantity | 1 |
