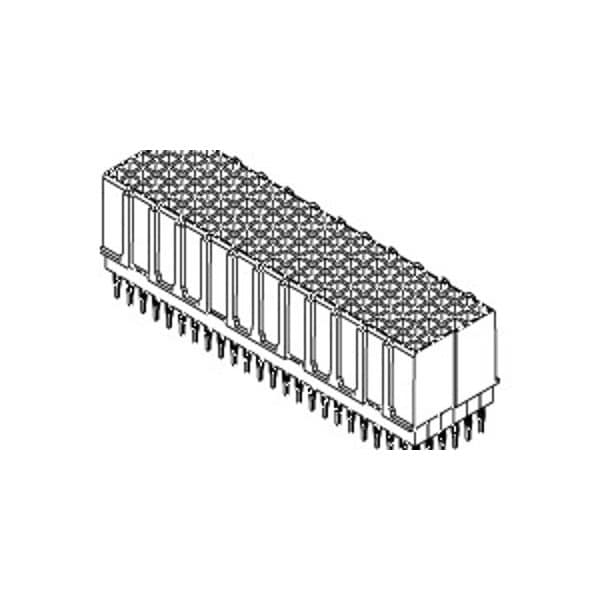

Conectores de placa a placa y para tarjeta mezzanine, apilables, con módulo de 30 pines. ST3, ST3.5. 144 contactos.
| Material | High Temperature Thermoplastic |
|---|---|
| Max. Voltage | 250 V AC |
| Application | Daughtercard, Mezzanine |
| Color | Black |
| Series | 73780 |
| Standards | UL E29179 |
| Max. Temp. | 260 deg C |
| Current Rating | 15 A, 1 A |
| Contact Finish | Gold Plated |
| Hole Center to Center | 2 mm |
| Number of Rows | 6 |
| Terminal Type | Through Hole |
| Flammability Rating | UL 94V-0 |
| Terminal Finish | Tin Plated |
| Features | Surface Mount Compatible |
| Number of Contacts | 144 |
| Contact Plating Thickness | 0.762 µm |
| Orientation | Vertical |
| Plating min - Mating | 0.762 um |
| PC Tail Length | 3.5 mm |
| PCB Retention | None |
| First Mate / Last Break | No |
| Material - Metal | Copper-Nickel-Tin |
| Flammability | 94 V to 0 |
| Number of Columns | 24 |
| Guide to Mating Part | No |
| Material - Resin | High Temperature Thermoplastic |
| Material - Plating Mating | Gold |
| Real Signals (per 25mm) | 75 |
| PCB Locator | No |
| PCB Thickness - Recommended | 1.6 mm |
| Shielded | No |
| Keying to Mating Part | None |
| Max-Temp | 260 |
| Max-Cycle | 1 |
| Durability (mating cycles max) | 250 |
| Max-Duration | 5 |
| Component Type | PCB Receptacle |
| Stackable | Yes |
| Current - Maximum per Contact | 15 A, 1 A |
| Number of Pairs | Open Pin Field |
| Data Rate | 1 Gbps |
| Material - Plating Termination | Tin |
| Circuits (Loaded) | 144 |
| Temperature Range - Operating | -55° to +105°C |
| UL | E29179 |
| Polarized to PCB | No |
| Product Name | HDM |
| Pitch - Mating Interface | 2 mm |
| Package Quantity | 1 |
