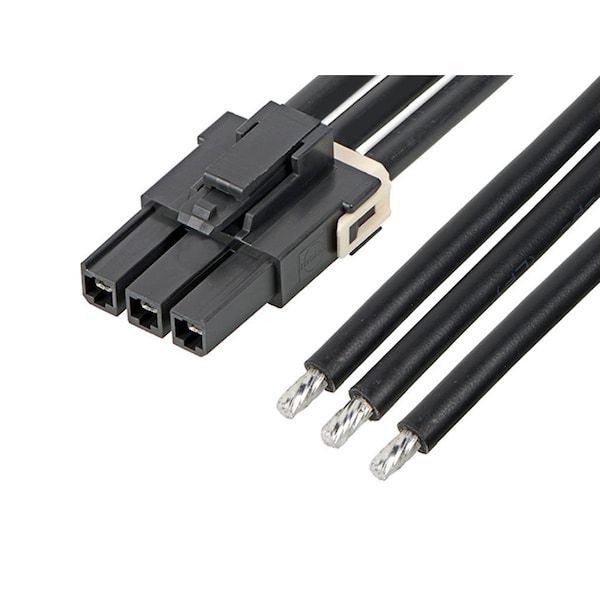

Mega-Fit Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Single Row, 300.00Mm Length, Tin
| Cable Length | 300 mm |
|---|---|
| Single Ended | Yes |
| Gender | Female-Pigtail |
| Circuits (Loaded) | 3 |
| Material - Plating Mating | Tin |
| Lock to Mating Part | Yes |
| Wire Size AWG | 12 |
| Current - Maximum per Contact | 25 A |
| Termination Interface: Style | Compression, Crimp |
| Pitch - Mating Interface | 5.7 mm |
| Material - Resin | Nylon |
| Wire/Cable Type | UL 1015 |
| Material - Plating Termination | Tin |
| Number of Rows | 1 |
| Voltage - Maximum | 600V AC (RMS)/DC |
| Wire Insulation Diameter | 4.06mm max. |
| Material - Metal | High Conductivity Copper |
| Package Quantity | 1 |
