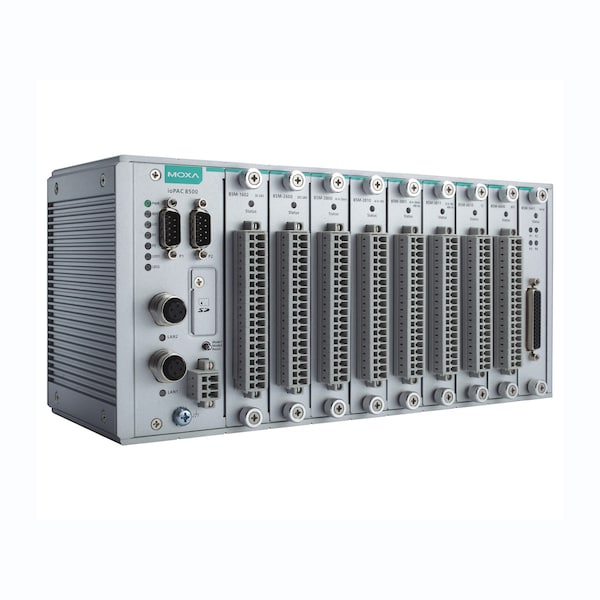

Iopac 85Xx I/O Module, 8 Ais, 4 To 20 Ma, 40 Khz, -40 To 75°C
| Isolation | 3K VDC or 2K Vrms |
|---|---|
| Type | Differential |
| Operating temperature | -40 to 75°C |
| Wiring | I/O cable, max. 16 AWG |
| Accuracy | ±0.1% FSR @ 25°C; ±0.3% FSR @ -40 and 75°C |
| Historical Data Buffering | Up to 6 sec per channel |
| Resolution | 16 bits |
| Analog Inputs | 8 channels |
| Database | Telcordia (Bellcore) |
| Input Impedance | 125 ohms (min.) |
| I/O Mode | 4 to 20 mA (wire off) |
| Connector | Spring type terminal block |
| Time | 1,410,655 hrs |
| Sampling Rate | All channels: 40k samples/sec; Per channel: 5k samples/sec |
| Power Consumption | 1.25 W @ 3.3 VDC |
| Package Quantity | 1 |
