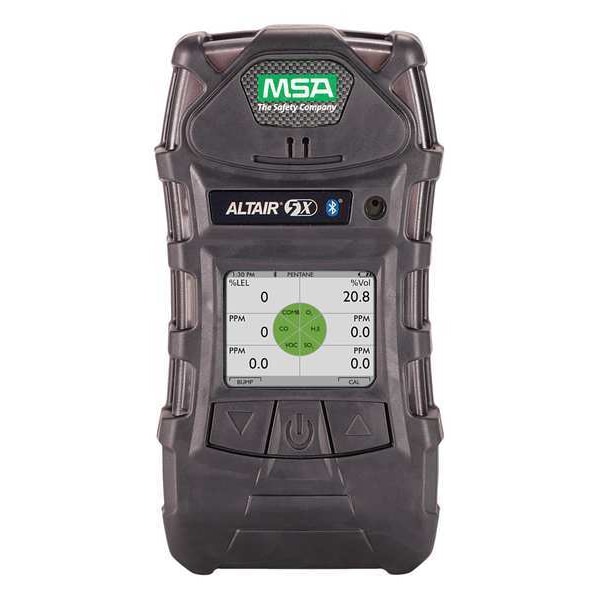

ALTAIR 5X Multi-Gas Detector, IP65, Audible, Vibrating, Visual, Monochrome, 13 hr Battery Life
| Item | Multi-Gas Detector |
|---|---|
| Gas Detected | Carbon Monoxide, Hydrogen Sulfide, LEL, Oxygen, VOC |
| Alarm Type | Audible, Visual, Vibrating |
| Alarm Setting | Carbon Monoxide (Alarm 1 - 25 ppm, Alarm 2 - 100 ppm), Hydrogen Sulfide (Alarm 1 - 10 ppm, Alarm 2 - 15 ppm), LEL (Alarm 1 - 10%, Alarm 2 - 20%), Oxygen (Alarm 1 - 19.5%, Alarm 2 - 23%) |
| Battery Life | 13 hr |
| Operating Temp. Range | 14 Degrees to 104 Degrees F (-10 Degrees to 40 Degrees C) |
| Standards | CSA Certified |
| Sensor Range | CO 0 to 2000 ppm, H2S 0 to 200 ppm, LEL 0 to 100%, O2 0 to 30% |
| IP Rating | IP65 |
| Series | ALTAIR 5X |
| Display Screen Type | Monochrome |
| Chemical Formula | CO, H2S, LEL, O2, PID |
| Features | Bump Test in Less Than 15 sec for Most Common Sensor Configurations, Greater Signal Stability and Repeatability Under Changing or Extreme Environmental Conditions, Sensor Response and Clear Times in Less Than 15 sec for Most Common Sensor Configurations, Span Calibration Time of 60 sec for Most Common Sensor Configurations |
| PID Ionization Energy Level | 10.6 eV |
| Resolution | 1% LEL, Carbon Monoxide 1 ppm, Hydrogen Sulfide 1 ppm, Oxygen 1 ppm |
| Housing Color | Gray |
| Includes | Screwdriver |
| Power Source | Battery |
| Status Indicator | LED |
| Rechargeable Battery | Yes |
| Operating Temperature - Maximum | 122 deg F |
| Includes Charger | Yes |
| Alert Type | Sound, Light, Vibration |
| Communication Protocol | Bluetooth |
| Operating Temperature - Minimum | -40 deg F |
| Hazardous Location Specification | Class I Divisions 1 Groups A, B, C, D, Class II Divisions 1 Groups E, F, G, Class III Divisions 1 |
| Overall Height | 6.69 in |
| Alarm Volume Level | 95 dB |
| Replaceable Battery | Yes |
| Includes Probe | No |
| Manufacturer Warranty Length | 3 yr |
| Sensor Life | 3 yr |
| Display Type | Digital |
| Battery Chemistry | Lithium Ion |
| Measurement Range | CO 0 to 2000 ppm, Hydrogen Sulfide 0 to 200 ppm, LEL 0 to 100%, Oxygen (0 to 30% vol) |
| Number of Gases Detected | 5 |
| Overall Width | 3.49 in |
| Housing Material | Rubber |
| Sensor Type | Photo Ionization |
| Overall Depth | 1.79 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
