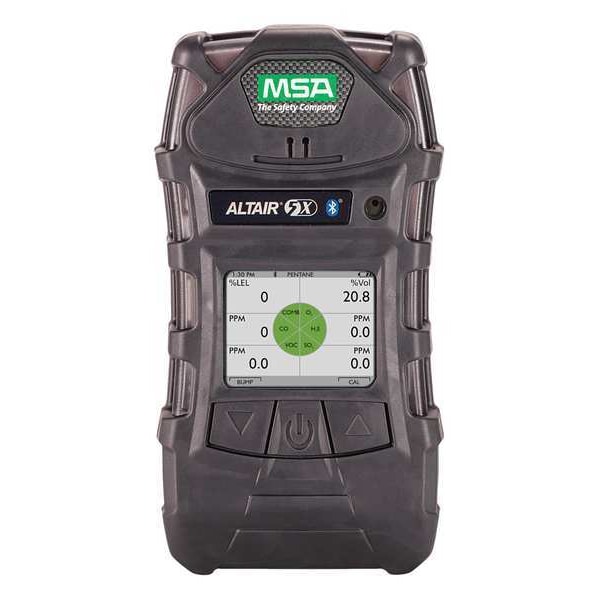

ALTAIR 5X Multi-Gas Detector, IP65, Audible, Vibrating, Visual, Monochrome, 20 hr Battery Life
| Item | Multi-Gas Detector |
|---|---|
| Gas Detected | Carbon Monoxide, Hydrogen Sulfide, LEL, Oxygen, VOC |
| Alarm Type | Audible, Visual, Vibrating |
| Alarm Setting | Carbon Monoxide (Alarm 1 - 25 ppm, Alarm 2 - 100 ppm), Hydrogen Sulfide (Alarm 1 - 10 ppm, Alarm 2 - 15 ppm), LEL (Alarm 1 - 10%, Alarm 2 - 20%), Oxygen (Alarm 1 - 19.5%, Alarm 2 - 23%) |
| Battery Life | 20 hr |
| Operating Temp. Range | 14 Degrees to 104 Degrees F (-10 Degrees to 40 Degrees C) |
| Standards | CSA Certified |
| Sensor Range | CO 0 to 2000 ppm, H2S 0 to 200 ppm, LEL 0 to 100%, O2 0 to 30% |
| IP Rating | IP65 |
| Series | ALTAIR 5X |
| Display Screen Type | Monochrome |
| Chemical Formula | CO, H2S, O2 |
| Housing Color | Gray |
| Resolution | 1% LEL, Carbon Monoxide 1 ppm, Hydrogen Sulfide 1 ppm, Oxygen 1 ppm |
| Includes | 1 ft Probe, 10 ft Sampling Line, Screwdriver |
| Features | Bump Test in Less Than 15 sec for Most Common Sensor Configurations, Greater Signal Stability and Repeatability Under Changing or Extreme Environmental Conditions, Sensor Response and Clear Times in Less Than 15 sec for Most Common Sensor Configurations, Span Calibration Time of 60 sec for Most Common Sensor Configurations |
| PID Ionization Energy Level | 10.6 eV |
| Status Indicator | LED |
| Power Source | Battery |
| Display Type | Digital |
| Overall Height | 6.69 in |
| Housing Material | Rubber |
| Communication Protocol | Bluetooth |
| Probe Length | 1 ft |
| Battery Chemistry | Lithium Ion |
| Measurement Range | CO 0 to 2000 ppm, Hydrogen Sulfide 0 to 200 ppm, LEL 0 to 100%, Oxygen (0 to 30% vol) |
| Overall Depth | 1.79 in |
| Alarm Volume Level | 95 dB |
| Manufacturer Warranty Length | 3 yr |
| Alert Type | Sound, Light, Vibration |
| Includes Charger | Yes |
| Sensor Type | Photo Ionization |
| Operating Temperature - Minimum | -40 deg F |
| Hazardous Location Specification | Class I Divisions 1 Groups A, B, C, D, Class II Divisions 1 Groups E, F, G, Class III Divisions 1 |
| Replaceable Battery | Yes |
| Operating Temperature - Maximum | 122 deg F |
| Rechargeable Battery | Yes |
| Includes Probe | Yes |
| Overall Width | 3.49 in |
| Sensor Life | 3 yr |
| Number of Gases Detected | 5 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
