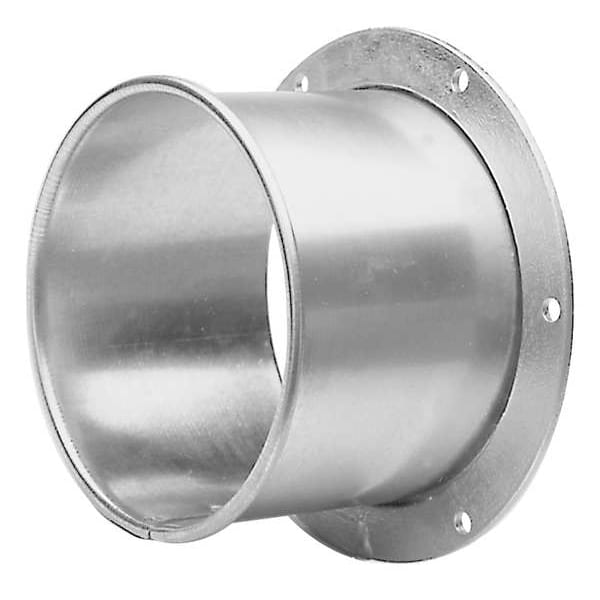

Adaptador de brida de ángulo redondo, diámetro de conducto de 6 pulgadas, acero galvanizado, calibre 22, largo de 3-1/2 pulgadas.
| Duct Fitting Duct Size | 6" |
|---|---|
| For Use With | QF Duct Work |
| Gauge | 22 ga |
| Construction Material | Galvanized Steel |
| Inlet Diameter | 6 in |
| Length | 3-1/2 in |
| Coating | Galvanized |
| Outlet Diameter | 6 in |
| Item | Angle Flange Adapter |
| Damper Shape | Round |
| Duct Fitting Diameter | 6 in |
| Duct Fitting Length | 3-1/2 in |
| Duct Fitting Material | Galvanized Steel |
| Duct Fitting Item | Angle Flange Adapter |
| Material | Steel |
| Duct Size | 6 in |
| Overall Length | 3-1/2 in |
| Type | Angle Flange Adapter |
| Overall Height | 6 in |
| Overall Width | 6 in |
| Finish | Galvanized |
| Product Type | Angle Flange Adapter |
| End Type | Quick-Fit |
| Flange Outer Diameter | 8-5/8 in |
| For Duct Shape | Round |
| Adapter Type | Angle Flange Adapter |
| Bolt Circle Diameter | 7-1/4 in |
| Maximum Pressure Rating | 42 in wc |
| Number of Holes on Flange | 6 |
| For Nominal Duct Diameter | 6 in |
| Flange Inner Diameter | 6-1/8 in |
| Connection Type | Clamp Together |
| Inside Diameter | 1/4 in |
| For Duct Width | 6 in |
| Shape | Straight |
| Overall Diameter | 6 in |
| For Duct Height | 6 in |
| Weight | 2.55 lb |
| Minimum Pressure Rating | 2 in wc |
| Material Thickness | 22 ga |
| Branch Diameter | Not Applicable |
| Package Quantity | 1 |
