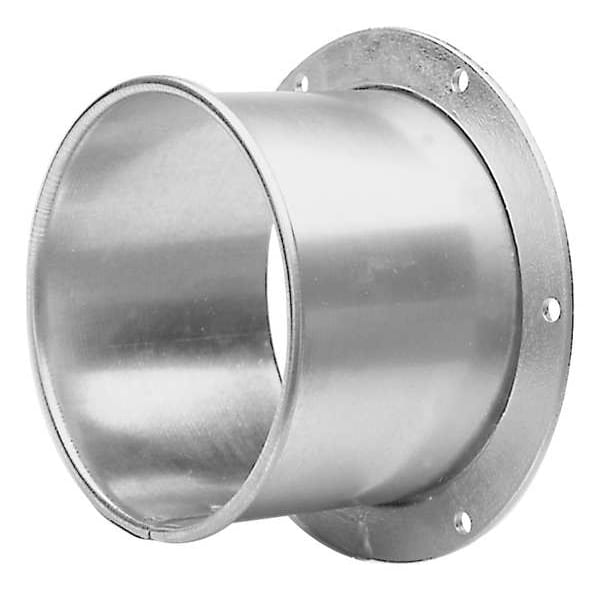

Round Angle Flange Adapter, 8 in Duct Dia, Galvanized Steel, 22 ga GA, 3-1/2" L
| Duct Fitting Duct Size | 8" |
|---|---|
| For Use With | QF Duct Work |
| Gauge | 22 ga |
| Construction Material | Galvanized Steel |
| Inlet Diameter | 8 in |
| Length | 3-1/2 in |
| Coating | Galvanized |
| Outlet Diameter | 8 in |
| Item | Angle Flange Adapter |
| Damper Shape | Round |
| Duct Fitting Diameter | 8 in |
| Duct Fitting Item | Angle Flange Adapter |
| Duct Fitting Material | Galvanized Steel |
| Duct Fitting Length | 3-1/2 in |
| Duct Size | 8 in |
| Material | Steel |
| Finish | Galvanized |
| Overall Height | 8 in |
| Type | Angle Flange Adapter |
| Overall Length | 3-1/2 in |
| Overall Width | 8 in |
| Shape | Straight |
| Material Thickness | 22 ga |
| For Duct Width | 8 in |
| Bolt Circle Diameter | 9-1/2 in |
| Adapter Type | Angle Flange Adapter |
| Connection Type | Clamp Together |
| Flange Outer Diameter | 10-5/8 in |
| Maximum Pressure Rating | 42 in wc |
| For Duct Height | 8 in |
| Product Type | Angle Flange Adapter |
| Minimum Pressure Rating | 2 in wc |
| Inside Diameter | 3/8 in |
| For Duct Shape | Round |
| Flange Inner Diameter | 8-1/8 in |
| End Type | Quick-Fit |
| Number of Holes on Flange | 6 |
| Weight | 3.15 lb |
| Overall Diameter | 8 in |
| For Nominal Duct Diameter | 8 in |
| Branch Diameter | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
