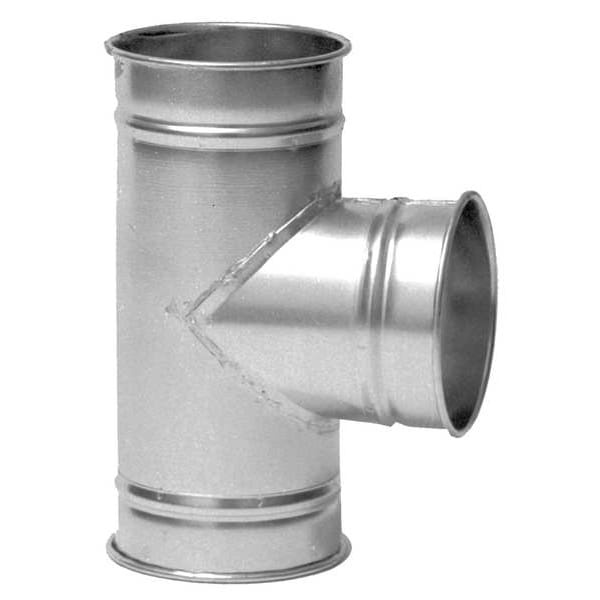

Tee Redonda, 8 pulgadas de diámetro de ducto, Acero galvanizado, Calibre 22, Longitud de 16 pulgadas, Altura de 12 pulgadas.
| Duct Fitting Duct Size | 8" |
|---|---|
| For Use With | QF Duct Work |
| Gauge | 22 ga |
| Height | 12 in |
| Construction Material | Galvanized Steel |
| Inlet Diameter | 8 in |
| Length | 16 in |
| Coating | Galvanized |
| Outlet Diameter | 8 in |
| Item | 8"dia 16"L 90 Degrees Steel Tee Branch |
| Damper Shape | Round |
| Duct Fitting Diameter | 8 in |
| Duct Fitting Length | 16 in |
| Duct Fitting Item | Tee |
| Duct Fitting Material | Galvanized Steel |
| Material | Steel |
| Finish | Galvanized |
| Overall Height | 12 in |
| Overall Width | 16 in |
| Type | Tee |
| Series | QF |
| Overall Length | 16 in |
| Color | Silver |
| Shape | Tee |
| Maximum Airflow | Not Applicable |
| For Duct Shape | Round |
| Maximum Temperature Rating | 390 deg F |
| Material Thickness | 22 ga |
| Maximum Pressure Rating | 42 in wc |
| Minimum Pressure Rating | 2 in wc |
| Connection Type | Clamp Together |
| For Duct Width | 8 in |
| For Nominal Duct Diameter | 8 in |
| Angle | 90 deg |
| Product Type | Tee Branch |
| Inside Diameter | 8 in |
| Weight | 4.8 lb |
| For Duct Height | 8 in |
| End Type | Quick Fit |
| Branch Diameter | 8 in |
| Package Quantity | 1 |
