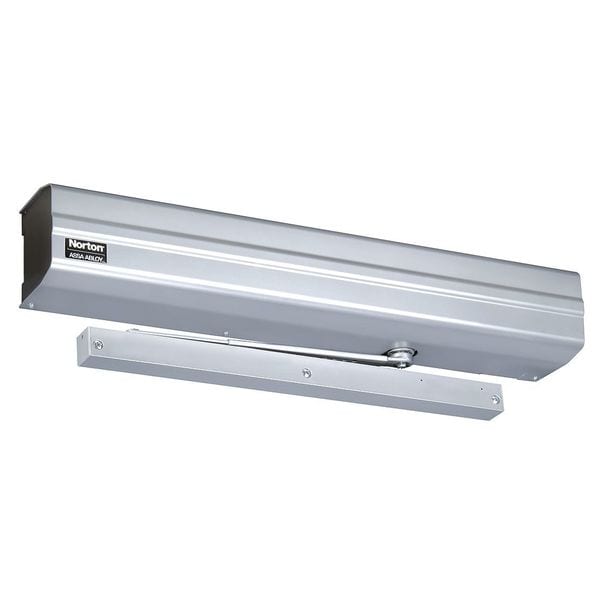

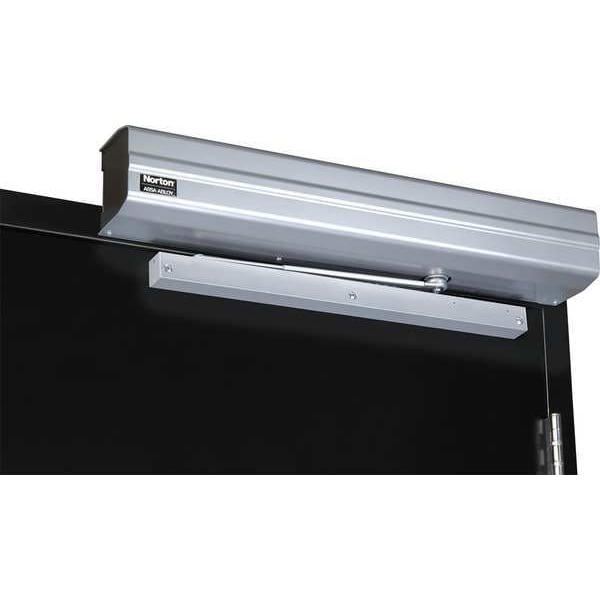

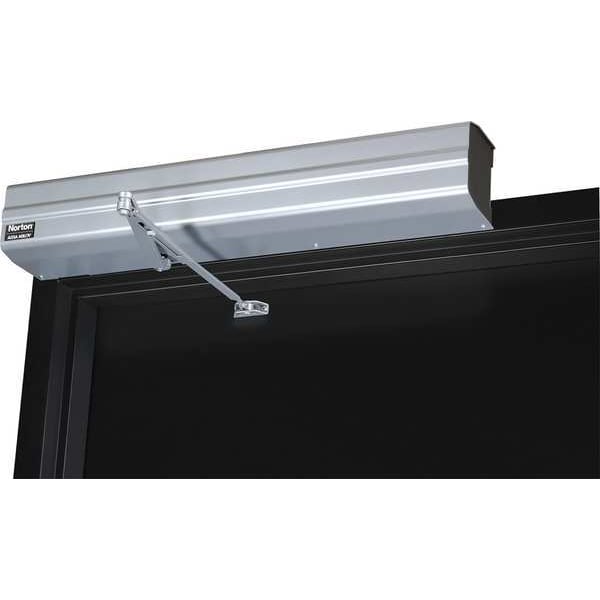

Automatic, Hydraulic, Norton 5700, Low Energy Operator, Heavy Duty Interior and Exterior, Gray
| Item | Low Energy Operator |
|---|---|
| Closer Mounting Style | Regular, Top Frame |
| Closer Performance | Heavy Duty |
| Closer Series | Norton 5700 |
| Closer Type | Electronically Controlled |
| Color | Gray |
| Finish | Aluminum Painted |
| Hand Orientation | Non-Handed |
| Housing Depth | 4-5/8 in |
| Housing Height | 5-1/4 in |
| Housing Length | 29 in |
| Interior/Exterior | Interior, Exterior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Automatic |
| Material | Cast Aluminum |
| Ligature Resistant | No |
| Interior Door Width | 30 to 48 in |
| ADA Compliant | Yes |
| Spring Size | Adjustable 3 to 6 |
| Exterior Door Width | 30 to 48 in |
| Max. Door Opening | Up to 180 Degrees |
| Includes | Cover |
| Standards | ANSI/BHMA A156.19; UL/cUL Listed; ADA Complaint |
| Projection from Wall | 4-5/8 in |
| Arm Type | Track |
| Category Type | Regular Arm |
| Type | Nonhanded Closer |
| Door Handing | Non-Handed |
| Power Source | Battery |
| Series | 5740 |
| For Use With | Interior and Exterior Doors |
| Hand | Non-Handed |
| Mounting Style | Push or Pull Side Top Jamb |
| Spring Size - Minimum | 3 |
| Performance Grade | 1 |
| Door Weight - Minimum | 40 lb |
| Height Between Mounting Holes | 1-3/4 in |
| Compatible Series | Not Applicable |
| Fire Rating | Not Rated |
| Exterior Door Width - Maximum | 48 in |
| Compatible Manufacturer Model Number | Not Applicable |
| Spring Type | Adjustable |
| Power Level | Low Energy |
| Compatible Brand | Norton |
| Door Opening - Maximum | 180 deg |
| Projection | 4-5/8 in |
| Spring Size - Maximum | 6 |
| Door Opening - Minimum | 180 deg |
| Exterior Door Width - Minimum | Not Applicable |
| ANSI/BHMA Finish | Aluminum Painted |
| Door Weight - Maximum | 250 lb |
| Ligature-Resistant | Not Ligature-Resistant |
| Operator Cycles | 1,000,000 |
| Length Between Mounting Holes | 1-3/4 in |
| Interior Door Width - Minimum | Not Applicable |
| Interior/Exterior Use | Interior, Exterior |
| Interior Door Width - Maximum | 48 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
