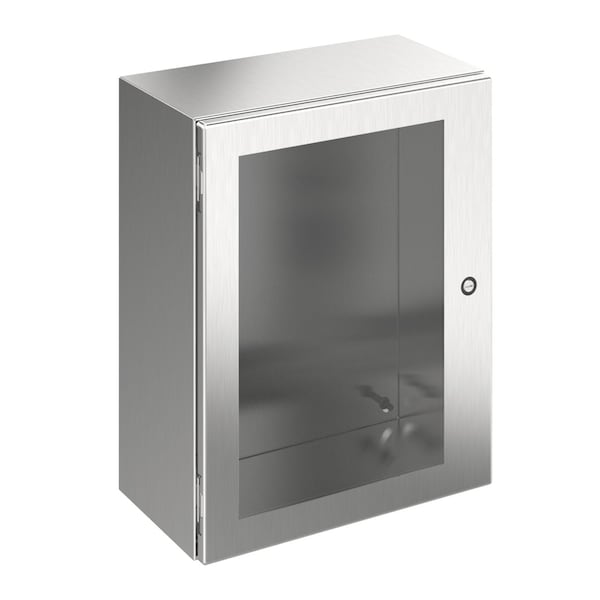

304 Stainless Steel Electrical Enclosures, 20 in H, 6 in D, 20 in W, NEMA 4X, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 20 in |
| Nominal Height | 20 in |
| Nominal Depth | 6 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Metallic / Non-Metallic | Metallic |
| Color | Natural |
| Finish | #4 Brushed |
| Mounting | Wall |
| Solid / Clear Cover | Clear |
| Standards | UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997; cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997; Mounting brackets required to meet UL/CSA external mounting requirements.; NEMA/EEMAC Type 3R, 4, 4X, 12, 13; IP66; IEC 60529, IP66; Meets NEMA Type 3RX requirements |
| Features | 4X Watertight, corrosion-resistant |
| IP Rating | IP66 |
| Window Size | 425 x 384 mm / 16.74 x 15.10 in |
| Latch Quantity | 1 |
| Package Quantity | 1 |
