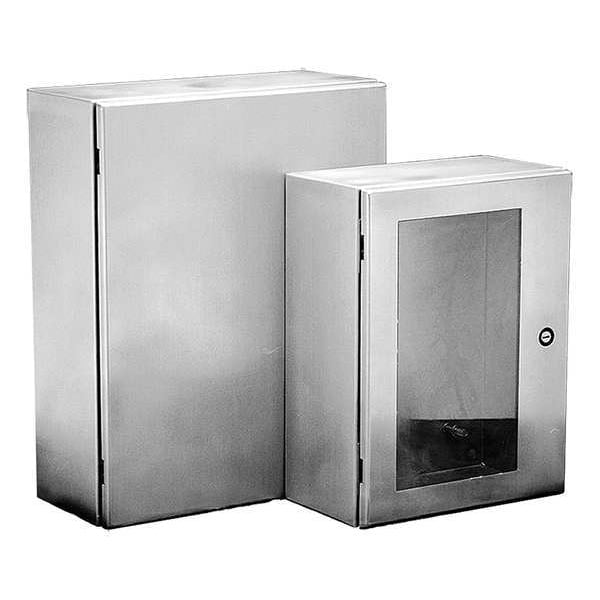

304 Stainless Steel Electrical Enclosures, 36 in H, 12 in D, 30 in W, NEMA 4X, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 30 in |
| Nominal Height | 36 in |
| Nominal Depth | 12 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | 1/4 Turn Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Silver |
| Finish | #4 Brushed |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Metal Gauge | 14/16 ga |
| Enclosure Cover Features | 1/4 Turn Latch with Screw Driver Slot |
| Standards | cUL Listed Per CSA C22.2 No 94, File No E61997, IEC 60529, Mounting Brackets Required to Meet UL/CSA External Mounting Requirements, UL 508A Listed |
| Interior Panel | 32FK32 |
| IP Rating | IP66 |
| Includes | Grounding Hardware, Sealing Washer |
| Series | CWS |
| Gasket | Polyurethane |
| Enclosure Material | Stainless Steel |
| Features | 4X Watertight, corrosion-resistant |
| Weight | 88 |
| Latch Quantity | 2 |
| Hazardous Location Specification | Not Applicable |
| Includes Knockouts | Knockouts Not Included |
| Gasket Material | Seamless Foam-In-Place |
| Body Material Thickness | 14 ga |
| Cover Closure Type | Hinged |
| Cover Style | Solid |
| Compatible Panel Model Number | CP3630, CP3630G |
| NEMA Enclosure Rating | 12, 4, 4X, 3R |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Package Quantity | 1 |
