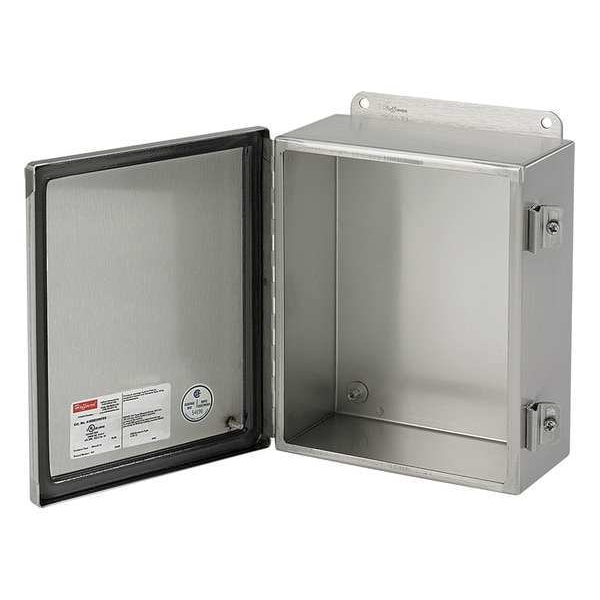

304 Stainless Steel Electrical Enclosures, 6 in H, 4 in D, 6 in W, NEMA 4X, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 6 in |
| Nominal Height | 6 in |
| Nominal Depth | 4 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | Clamps |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | #4 Brushed |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Features | Weld Nuts for Mounting Panel and Terminals |
| Interior Panel | 32FR66 |
| Series | A51S |
| Standards | CSA File No 42184: Type 4, 4X, 12, cUL Listed Per CSA C22.2 No 94, File No E27567, File No E61997, IEC 60529, UL 50, 50E Listed, UL 508A Listed |
| Enclosure Cover Features | Screw-Down Clamps |
| Metal Gauge | 14/16 ga |
| IP Rating | IP66 |
| Gasket | Polyurethane |
| Enclosure Material | Stainless Steel |
| Weight | 3.6 |
| Cover Closure Type | Hinged |
| Body Material Thickness | 16 ga |
| Compatible Panel Model Number | A6P6G |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Gasket Material | Seamless Foam-In-Place |
| Includes Knockouts | Knockouts Not Included |
| Hazardous Location Specification | Not Applicable |
| Cover Style | Solid |
| NEMA Enclosure Rating | 12, 4, 4X, 3R |
| Package Quantity | 1 |
