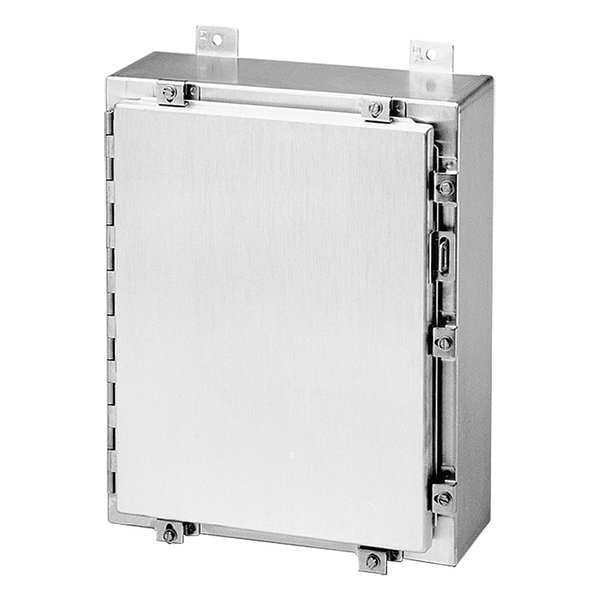

Aluminum Electrical Enclosures, 20 in H, 6 in D, 20 in W, NEMA 4X, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 20 in |
| Nominal Height | 20 in |
| Nominal Depth | 6 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | Aluminum |
| Closure Method | Screws, Clamps |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Aluminum |
| Finish | Brushed |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Features | Hasp and Staple for Padlock |
| Series | A4A |
| Metal Gauge | 12 ga |
| IP Rating | IP66 |
| Interior Panel | 32FT35 |
| Gasket | Neoprene |
| Enclosure Cover Features | Hasp and Staple for Padlocking |
| Standards | CSA File No 42186: Type 4, 4X, 12, cUL Listed Per CSA C22.2 No 94, File No E61997, IEC 60529, UL 508A Listed |
| Enclosure Material | Aluminum |
| Weight | 15 |
| Data Pocket Size | 6.00 x 6.00 in / 152 x 152 mm |
| Cover Closure Type | Hinged |
| Cover Style | Solid |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Includes Knockouts | Knockouts Not Included |
| Body Material Thickness | 0.08 in |
| NEMA Enclosure Rating | 12, 4, 4X, 3R |
| Hazardous Location Specification | Not Applicable |
| Gasket Material | Neoprene |
| Compatible Panel Model Number | A20P20AL, A20P20G |
| Package Quantity | 1 |
